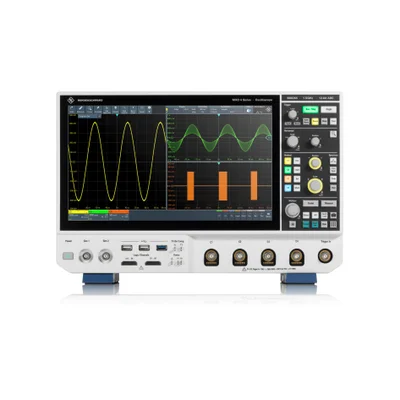

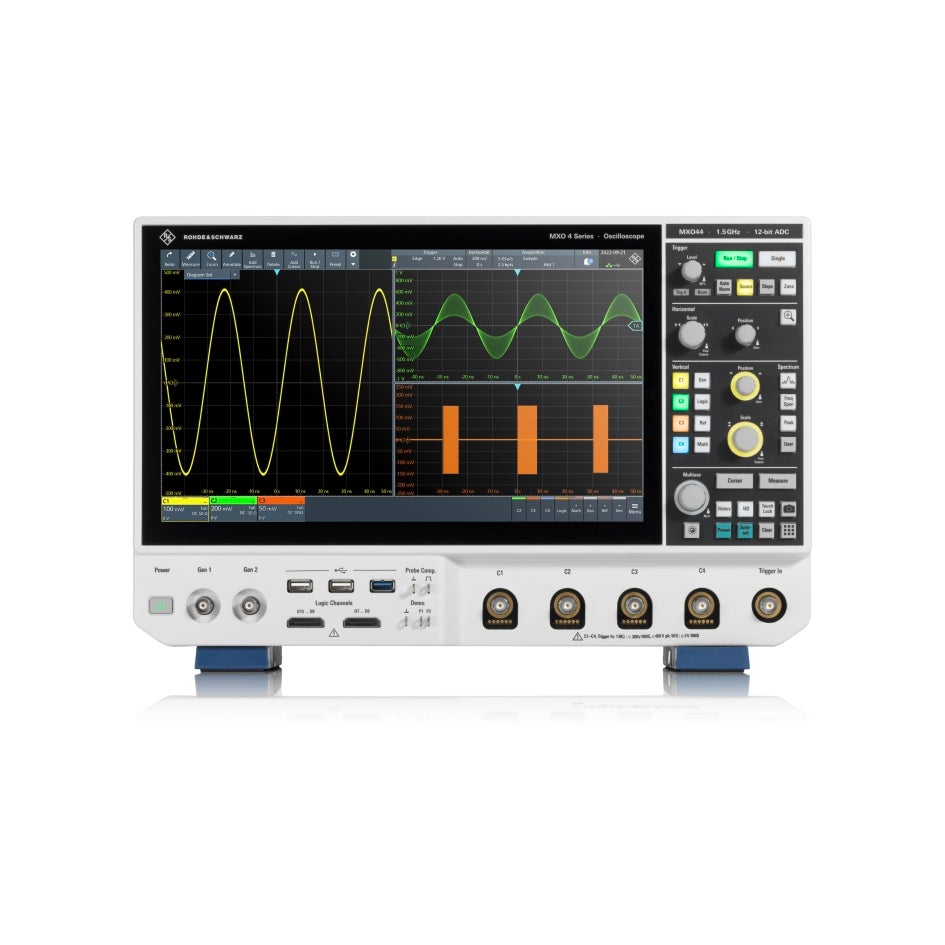

Rohde & Schwarz MXO44 (1335.5050.04)
Available to Buy Online
View Configurations
MXO 4 Series Digital Oscilloscope; with Keycode Bandwidth Upgrades
Model
MXO44 (1335.5050.04)Product Family
Oscilloscopes & Logic AnalyzersManufacturer
Rohde & SchwarzConfigured models contain the following attributes:
Oscilloscopes & Logic AnalyzersOscilloscopes < 1GHzConfigurations
Key Specs
Product Overview
Resources
Let us help you with your exact configuration
Please use 'Get Quick Quote' or ‘Configure Unit’ and we’ll contact you and quote for your exact need.
You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.
Key Specs
Please refer to the Resources section for Datasheets or see the Product Overview.
If you would like to know more, please get in touch and one of our team will be happy to help.
Product Overview
The MXO 4 series is the first of a new generation of oscilloscopes that excels in both performance and value. The instruments deliver a once-in-a-decade engineering breakthrough for accelerated insight.
They have the world’s fastest real-time update rate of 4.5 million waveforms/s, meaning engineers can see more infrequent events than with any other instrument. With its 12-bit ADC, the MXO 4 series has 16 times the resolution of traditional 8-bit oscilloscopes at all sample rates without any compromises for more precise measurements. With a standard acquisition memory of 400 Mpoints on all four channels and an optional 800 Mpts interleaved, the instrument has up to 100 times the standard memory of comparable instruments.
A class above similar oscilloscopes, MXO 4 series oscilloscopes sport an impressive 13.3" Full HD capacitive touchscreen and an intuitive user interface with a learning curve of less than 15 minutes.
Keycode bandwidth upgrades mean that an in stock 200 MHz model can be instantly upgraded by the user to 350, 500 MHz, 1 or 1.5 GHz
| Key Features |
| Bandwidth: 200 MHz - 1.5 GHz, upgradable with keycode license |
| Update rate exceeding 4.5 million waveforms per second |
| 12 bit ADC at all sample rates |
| Fastest and most accurate spectrum analysis in its class |
| Industry’s deepest standard memory of 400 Mpoints per channel |
| Fast trigger rearm time of 21 ns |
| Digital triggering with sensitivity of 1/10000 div |
| Best in class trigger jitter of < 1 ps |
| Benefits | |
| Find Signal Anomalies Quickly | > 4.5 million waveforms/s. Up to 90 % real-time signal capture. Fast performance with active automatic measurements, FFT or cursor measurements. Quickly and reliable detect sporadic signal faults. |
| See your Signals Accurately | 12 bit ADC vertical resolution at all sample rates without compromise 18 bit architecture with HD mode Vertical scaling down to 500µV/div at full bandwidth Industry's highest available offset range of ±5 V at 500µV/div |
| Capture more Time | Industry's deepest memory of 400 Mpoints per channel Standard segmented memory with 10,000 segments Standard history mode with 10,000 acquisitions |
| Isolate Events | Industry's most sensitive trigger: 1/10,000 vertical division Best in class trigger jitter of just 1 ps World's fastest trigger filters User-selectable hysteresis |
| Superior User Experience | Quick access to important tools and menu settings SmartGrid for individual waveform layouts with drag and drop Enhanced touch sensitivity when changing important parameter values Find features and functions faster with the new search menu Remote control access wherever and whenever you need it |
| Specifications | ||||||
| MXO 4 Series | ||||||
| Model Overview | ||||||
| Model | Order Number | Bandwidth | Channels | Sample Rate | Max. Memory Depth | Optional MSO |
| MXO44-242 | 1335.5050P02 | 200 MHz | 4 | 5 Gsample/s | 400 Mpts per channel | 16 digital channels |
| MXO44-243 | 1335.5050P03 | 350MHz | 4 | 5 Gsample/s | 400 Mpts per channel | 16 digital channels |
| MXO44-245 | 1335.5050P05 | 500 MHz | 4 | 5 Gsample/s | 400 Mpts per channel | 16 digital channels |
| MXO44-2410 | 1335.5050P10 | 1 GHz | 4 | 5 Gsample/s | 400 Mpts per channel | 16 digital channels |
| MXO44-2415 | 1335.5050P15 | 1.5 GHz | 4 | 5 Gsample/s | 400 Mpts per channel | 16 digital channels |
| Specifications | ||
| MXO 4 Series | ||
| Model Overview | ||
| Model | Order Number | Description |
| MXO 4 | 1335.5050.04 | MXO 4 Series, Base Model; Oscilloscope, 200 MHz, 4 channels Included accessories: 700 MHz Passive Probe (10:1) per Channel Accessories Bag Quick Start Guide Power Cord |
| Bandwidth Upgrade | ||
| MXO4-B243 | 1335.4276.02 | Upgrade of MXO 4 series oscilloscopes to 350 MHz bandwidth |
| MXO4-B245 | 1335.4299.02 | Upgrade of MXO 4 series oscilloscopes to 500 MHz bandwidth |
| MXO4-B2410 | 1335.4318.02 | Upgrade of MXO 4 series oscilloscopes to 1 GHz bandwidth |
| MXO4-B2415 | 1335.4330.02 | Upgrade of MXO 4 series oscilloscopes to 1.5 GHz bandwidth |
| Option | ||
| MXO4-B1 | 1335.4130.02 | Mixed signal option for R&S®MXO 4 series with 16 digital channels |
| MXO4-B6 | 1335.4147.02 | Arbitrary waveform generator, 100 MHz, 2 analog channels |
| MXO4-B108 | 1335.5772.02 | Memory upgrade to 800 Mpoints on 2 channels |
| MXO4-K510 | 1335.5195.02 | Low speed serial triggering and decode (I 2C/SPI/UART/RS-232/RS-422/RS-485) |
| MXO4-K520 | 1335.5550.02 | Automotive serial triggering and decode (CAN/CAN FD/CAN XL/LIN) * |
| MXO4-K36 | 1335.5572.02 | Frequency response analysis |
| MXO4-PK1 | 1335.5237.02 | Application bundle, consists of the following options: MXO4-K510 MXO4-K520 * MXO4-K36 MXO4-B6 |
Note:
* Available with future firmware release.
