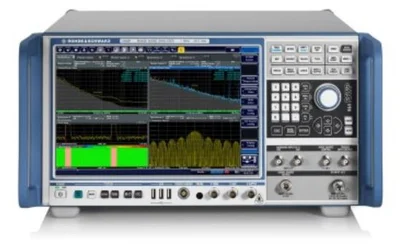

Rohde & Schwarz FSWP8 (1322.8003.08)

Phase Noise Analyzer; 1 MHz to 8 GHz

Model

FSWP8 (1322.8003.08)

Product Family

RF & Microwave Power

Manufacturer

Rohde & Schwarz

Configured models contain the following attributes:

RF & Microwave PowerNoise & OtherNoise Test Sets

Configurations

Key Specs

Product Overview

Resources

Let us help you with your exact configuration

Please use 'Get Quick Quote' and we’ll contact you and quote for your exact need.

You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.

Product Overview

The R&S FSWP phase noise analyzer and VCO tester combines extremely low-noise internal sources and cross-correlation technology, delivering extremely high sensitivity for phase noise measurements. As a result, it takes just seconds to measure even highly stable sources such as those found in radar applications. Additional options such as pulsed signal measurements, additive phase noise (including pulsed) characterization and integrated high-end signal and spectrum analysis make the analyzer a unique test instrument.

Key Features

Frequency range from 1 MHz to 8/26.5/50 GHz

High sensitivity for phase noise measurements thanks to cross-correlation and extremely low-noise internal reference sources:

Typ. 172 dBc (1 Hz) at 1 GHz carrier frequency and 10 kHz offset

Typ. 153 dBc (1 Hz) at 10 GHz carrier frequency and 10 kHz offset

Simultaneous measurement of amplitude noise and phase noise

Measuring phase and amplitude noise with high sensitivity

Phase noise measurements on pulsed sources at the push of a button

Internal source for measuring additive phase noise, also on pulsed signals

Wide dynamic range thanks to low displayed average noise level

(DANL) of 156 dBm (1 Hz) (without noise cancellation) and high TOI of typ. 25 dBm

80 MHz signal analysis bandwidth

Total meas. uncertainty: < 0.2 dB up to 3.6 GHz,< 0.3 dB up to 8 GHz

Touchscreen operation with large 12.1" display for simultaneous viewing of multiple measurement windows

Various measurement applications can be run and displayed in parallel

High measurement speed

Low-noise internal DC sources for VCO characterization

Specifications
FSWP Phase Noise Analyzer and VCO Tester
Series Overview
Model	Order Number	Frequency Range	Phase Noise	Max. Analysis Bandwidth	Instrument Type
FSWP8	1322.8003.08	1 MHz - 8 GHz	< –166 dBc (1 Hz) (f = 1 GHz, 10 kHz offset)	320 MHz	Phase noise analyzer and VCO tester
FSWP26	1322.8003.26	1 MHz - 26.5 GHz	< –166 dBc (1 Hz) (f = 1 GHz, 10 kHz offset)	320 MHz	Phase noise analyzer and VCO tester
FSWP50	1322.8003.50	1 MHz - 50 GHz	< –166 dBc (1 Hz) (f = 1 GHz, 10 kHz offset)	320 MHz	Phase noise analyzer and VCO tester
