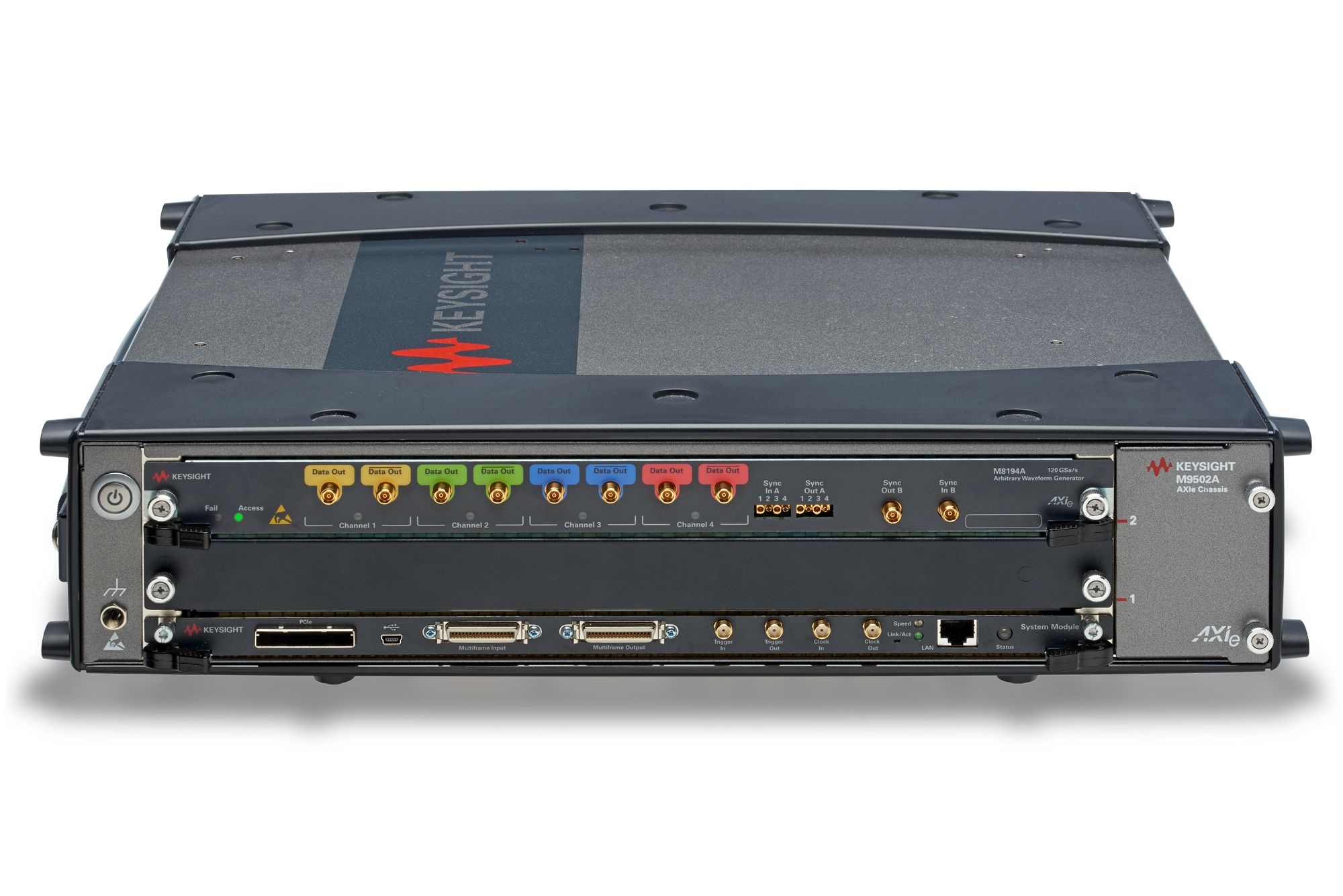

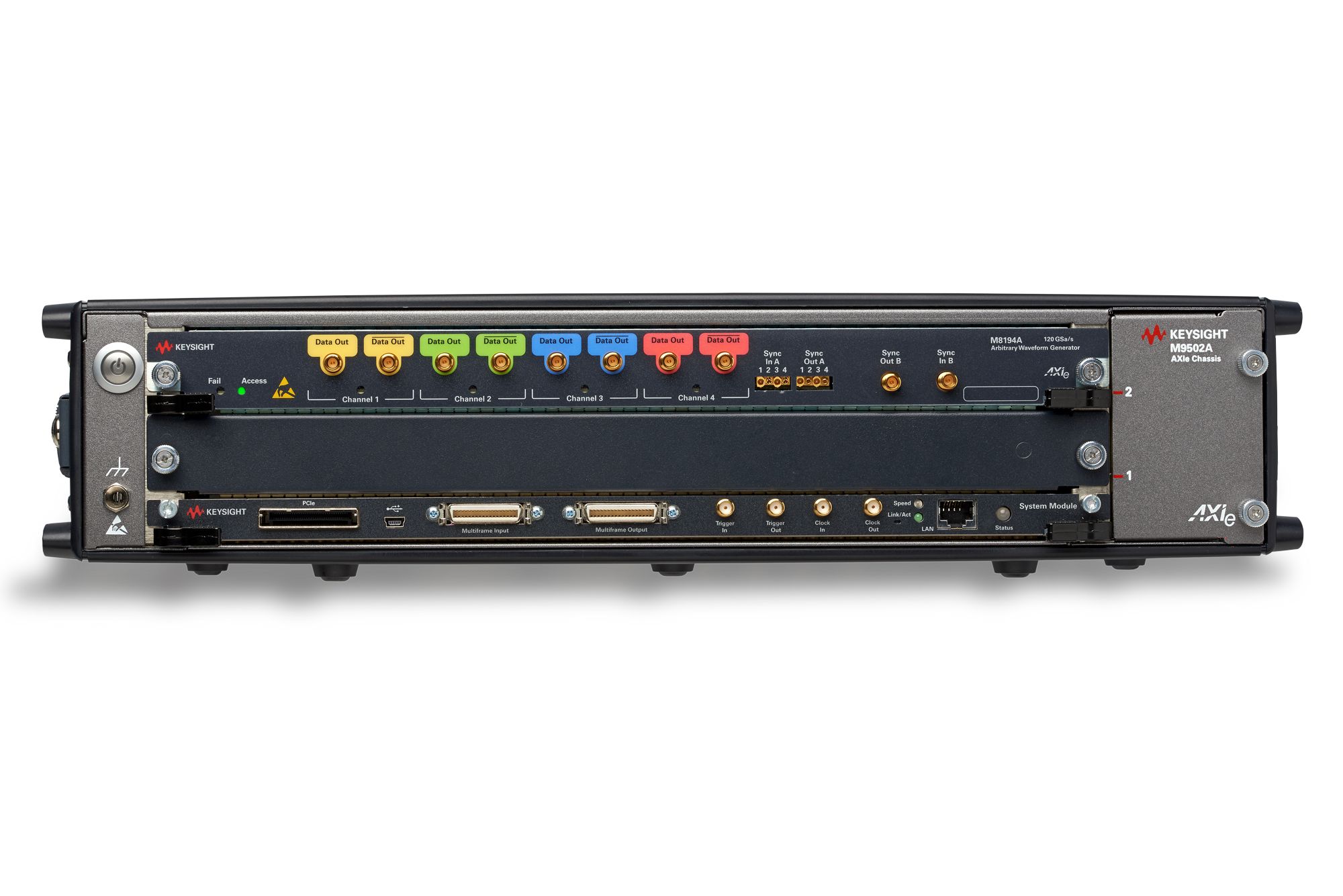

Keysight Technologies M8194A

Arbitrary Waveform Generator 120 GSa/s

Model

M8194A

Product Family

Digital Design

Manufacturer

Keysight Technologies

Configured models contain the following attributes:

Digital DesignHigh-Speed ARBS4120 GS/s

Configurations

Key Specs

Product Overview

Resources

Let us help you with your exact configuration

Please use 'Get Quick Quote' and we’ll contact you and quote for your exact need.

You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.

Attribute	Value
Channel/Port Count	4
Maximum Sample/Data Rate	120 GS/s

Product Overview

Designed uniquely to meet the requirements of 64 GBd/64 QAM and 100 GBd PAM4, the M8194A is specially addresses coherent optical and multi-level/multi-channel digital signal requirements. The M8194A is currently the fastest AWG from Keysight (120 GSa/s), delivering the highest bandwidth and best ENOB for cleanest signal generation. In addition to best-in-class instrument performance, the M8194A offers flexibility, without complexity, in single or multi-channel operation.

Key Features:

AWG with the highest combination of speed, bandwidth and channel density
1, 2 or 4 differential channels on a 1-slot AXIe module enable optimized channel density
120 GSa/s sample rate
Arbitrary signal generation with frequency content up to 50 GHz
Synchronization across modules
8-bit vertical resolution
512 kSamples per channel (enables PRBS 2¹⁵-1)
