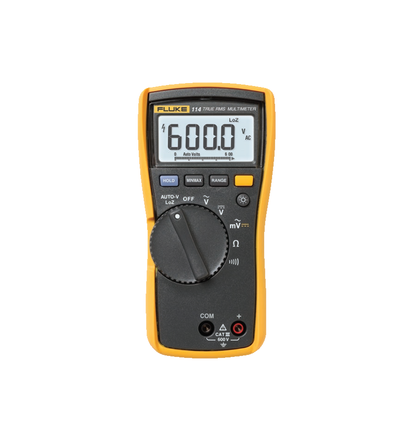

Fluke 114 digital multimeter is the ideal choice for go/no-go testing; Designed for easy one-handed operation, the compact Fluke 114 True RMS digital multimeter is the perfect troubleshooting tool for go/no go testing. Its AutoVolt capability automatically switches to measure AC or DC voltage, whichever is present. And you can use the LoZ function to identify so-called ghost voltage and prevent false readings.
The Fluke 114 displays True-RMS voltage and current readings with 6000 count resolution, and tests frequency, continuity and resistance. A large white LED backlight aids work in poorly lit areas. And its easy-open battery access door makes battery changes easy.
A great choice for everyday troubleshooting, the Fluke 114 Electrical Multimeter is CAT III 600 V safety rated and is a compact True-RMS meter.
Fluke 114 multimeters are independently tested for safe use in CAT III 600V environments.
| Key Features |
| Ideal Digital Multimeter for “go/no-go” testing |
| Features AutoVolt automatic AC/DC voltage selection |
| Includes low input impedance to help prevent false readings due to ghost voltage |
| Presents a large white LED backlight for working in poorly lit areas |
| Measures resistance, continuity, frequency, and capacitance |
| Provides Min/Max/Average with elapsed time to record signal fluctuations |
| Features a compact ergonomic design for one-handed operation |
| Comes with an holster with probe holders for easy storage |
| Features manual and automatic ranging |
| Safety rates CAT III 600 V |
| Fits into optional ToolPak™ magnetic hanger for hands-free operation |
| Specifications |
|
Fluke 114
Electrical Multimeter
|
|
| Features | Parameters |
| Maximum Voltage between any Terminal and Earth Ground | 600 V |
| Safety | IEC 61010-1: Pollution Degree 2
IEC 61010-2-033: CAT III 600V
|
| Display | Digital: 6,000 counts, updates 4 per second |
| Bar Graph | 33 segments, updates 32 per second |
| Operating Temperature | -10°C to + 50°C |
| Storage Temperature | -40°C to + 60°C |
| Battery Type | 9 volt Alkaline, IEC 6LR61 |
| Battery Life | 400 hours typical, without backlight |
| Specifications |
|
| Fluke 110 Series |
|
| Model Overview |
|
| Model | Description |
| Fluke 110 | True-rms Digital Multimeter |
| Fluke 113 | Digital Multimeter |
| Fluke 114 | Electrical Multimeter |
| Fluke 115 | Digital Multimeter for Technicians |
| Fluke 116 | HVAC Multimeter with Temperature and Microamps |
| Fluke 117 | Electricians Multimeter with Non-Contact voltage |
