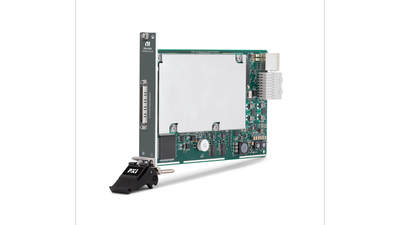

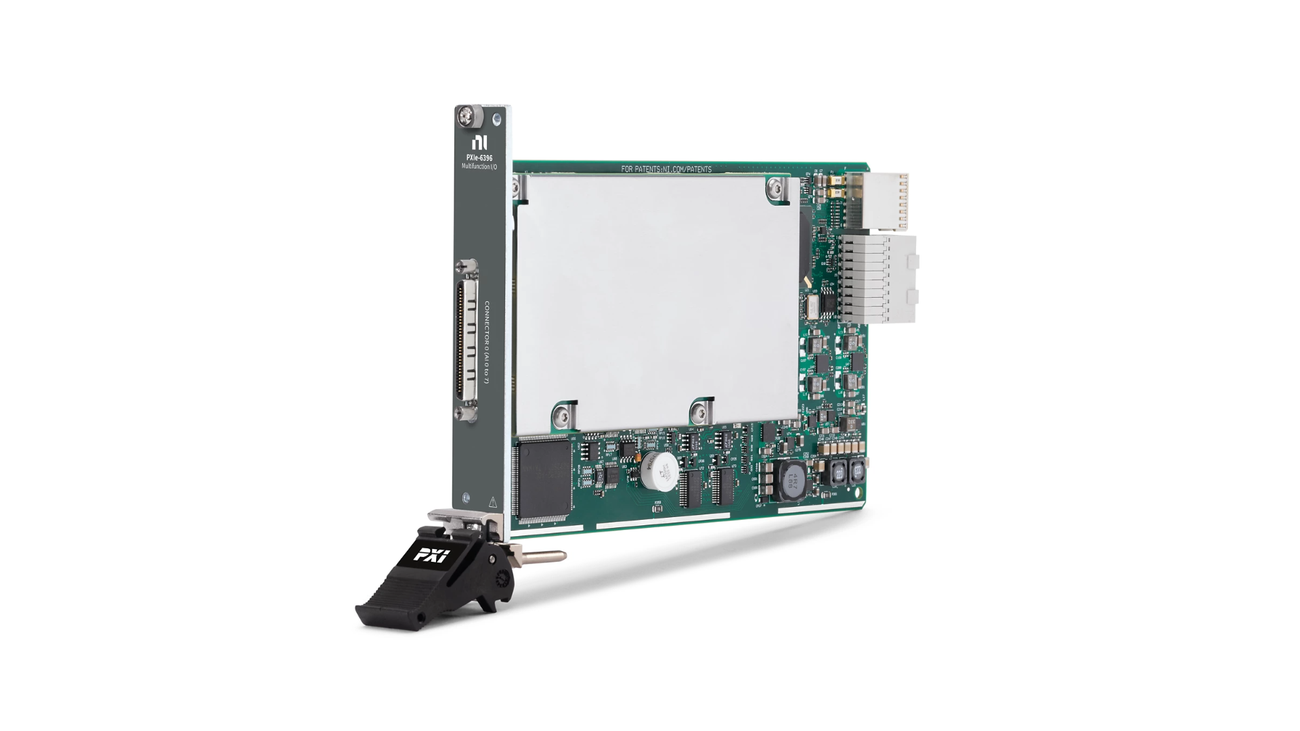

NI PXIe-6396

PXI Multifunction I/O Module: PXIe, 8 AI (18-Bit, 14 MS/s/ch), 2 AO, 24 DIO

Model

PXIe-6396

Manufacturer

Configured models contain the following attributes:

Configurations

Product Overview

Resources

Let us help you with your exact configuration

Please use 'Get Quick Quote' and we’ll contact you and quote for your exact need.

You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.

Product Overview

PXIe, 8 AI (18-Bit, 14 MS/s/ch), 2 AO, 24 DIO, PXI Multifunction I/O Module.

The PXIe-6396 is a simultaneous sampling, multifunction DAQ device. It offers analog I/O, digital I/O, four 32-bit counters, and analog and digital triggering. Onboard NI-STC3 timing and synchronization technology delivers advanced timing functionality, including independent analog and digital timing engines and retriggerable measurement tasks.

The PXIe-6396 is ideal for a variety of applications, such as IF digitization; transient recording; ISDN, ADSL, and POTS manufacturing test in the telecom industry; ultrasound and sonar testing; and high-energy physics. The included NI-DAQmx driver and configuration utility simplify configuration and measurements.

SPECIFICATIONS
Model: PXIe-6396
Feature	Parameter
Maximum Number of Single-Ended Analog Input Channels	0
Analog Input Resolution	18 bits
Maximum Sample Rate	14 MS/s/ch
Number of Analog Output Channels	2
Maximum Update Rate	3.3 MS/s/ch
Bus Connector	PXI Express
Number of Bidirectional Digital Channels	24
Electrical Signal Measured	Voltage
Analog Input FIFO Buffer Size	8182 samples
Maximum Number of Differential Analog Input Channels	8
Current Flow Direction	-
Simultaneous Sampling	Yes
Analog Input Absolute Accuracy	210 μV
Number of Counters/Timers	4
