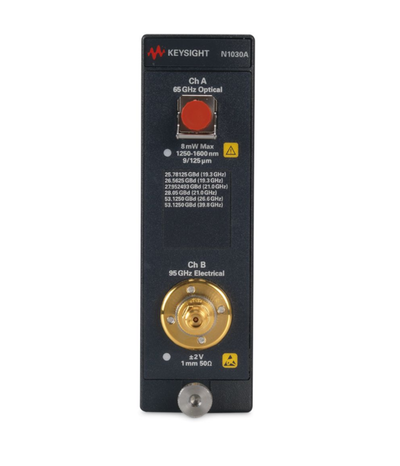

N1030A is an optical plug-in module for the DCA-X mainframe that can be configured with 65 GHz optical channel / 65 GHz optical & 95 GHz electrical channel.
| Key Features |
| One 65 GHz optical channel |
| Optional electrical channel with 33/40/50/70/85/95 GHz bandwidth settings |
| Jitter as low as 90 fs |
| Ideal for analyzing optical signals > 53 GBd |
| Impulse response correction on all channels (optical and electrical) |
| Protect your investment: works with both the N1000A (250 kSa/s sampling rate) and 86100D (40 kSa/s sampling rate) mainframes |
| SPECIFICATIONS |
|
| Model: N1030A Single Channel Optical Module |
|
| Feature | Parameter |
| Applications | DCA-X Single-Mode Optical Module |
| Max Memory Depth | N/A |
| Operating System | Windows 10 |
| Supported Filter Range | 15.6 GBd to 120 GBd |
| Bandwidth Options | 60 GHz |
| Electrical Channels | 1 |
| Optical Channels | 1 |
| Number of Channels | 1 optical, 1 electrical |
| Module Type | SM Optical, Electrical (optional) |
| Form Factor | Module |
| Instrument Type | Equivalent-Time |
| Type | Equivalent-Time |
| Maximum Bandwidth | 95 GHz |
| Bandwidth Options | 65 GHz optical|95 GHz electrical |
| Intrinsic Jitter | 90 fs rms |
| Wavelength Range | 1250 nm to 1600 nm |
| Maximum Sample Rate | 250kHz |
| Input Type | FC/PC optical, 1.0 mm electrical |
| Maximum Optical Bandwidth | 65 GHz |
| Maximum Electrical Bandwidth | 95 GHz |
| SPECIFICATIONS |
|
| DCA-X Modules Overview |
|
| Model | Description |
| N1000A | Infiniium DCA-X mainframe |
| 86100D | Infiniium DCA-X Wide-Bandwidth Oscilloscope Mainframe |
| Optical Electrical Modules * |
|
| N1030A | Single 65 GHz optical channel, 9/125 μm fiber input |
| N1030B | Two 65 GHz optical channels, 9/125 μm fiber input |
| N1032A | Single 120 GHz optical channel, 9/125 μm fiber input |
| N1032B | Two 120 GHz optical channels, 9/125 μm fiber input |
| Dual/ Quad Electrical Channel Modules * |
|
| N1040A | Dual electrical channel module |
| N1045B | 2/4 port 60 GHz electrical remote head |
| N1046A | 100 GHz, 1/2/4 port electrical remote sampling head |
| TDR/TDT Modules * |
|
| N1055A ¹ | 35/50 GHz 2/4 Port electrical remote head module with TDR/TDT |
| Precision Waveform Analyzer Module * |
|
| N1060A | Precision waveform analyzer ² (6) |
| External Clock Recovery Solutions Module * |
|
| N1076B | Electrical clock recovery |
| N1077A | Optical/electrical clock recovery |
| N1077B | Optical/electrical clock recovery |
| N1078A | Optical/electrical clock recovery |
| DCA-M Sampling Oscilloscope Module * |
|
| N1090A | Optical sampling oscilloscope |
| Optical DCA-M Sampling Oscilloscope Module * |
|
| N1092A | Single optical channel oscilloscope |
| N1092B | Dual optical channel oscilloscope |
| N1092D | Quad optical channel oscilloscope |
| N1092C | Single optical, dual electrical channel oscilloscope |
| N1092E | Dual optical, dual electrical channel oscilloscope |
| Electrical DCA-M Oscilloscope Module * |
|
| N1094A | Dual electrical channel oscilloscope |
| N1094B | Quad electrical channel oscilloscope |
Note:
* Please See Data Sheet in Resources for module options
¹ When used in an 86100D, 86100D option ETR is recommended if more than one TDR module is connected to the same DUT
² Module includes a custom System Impulse Response Correction (SIRC) file for each channel .
