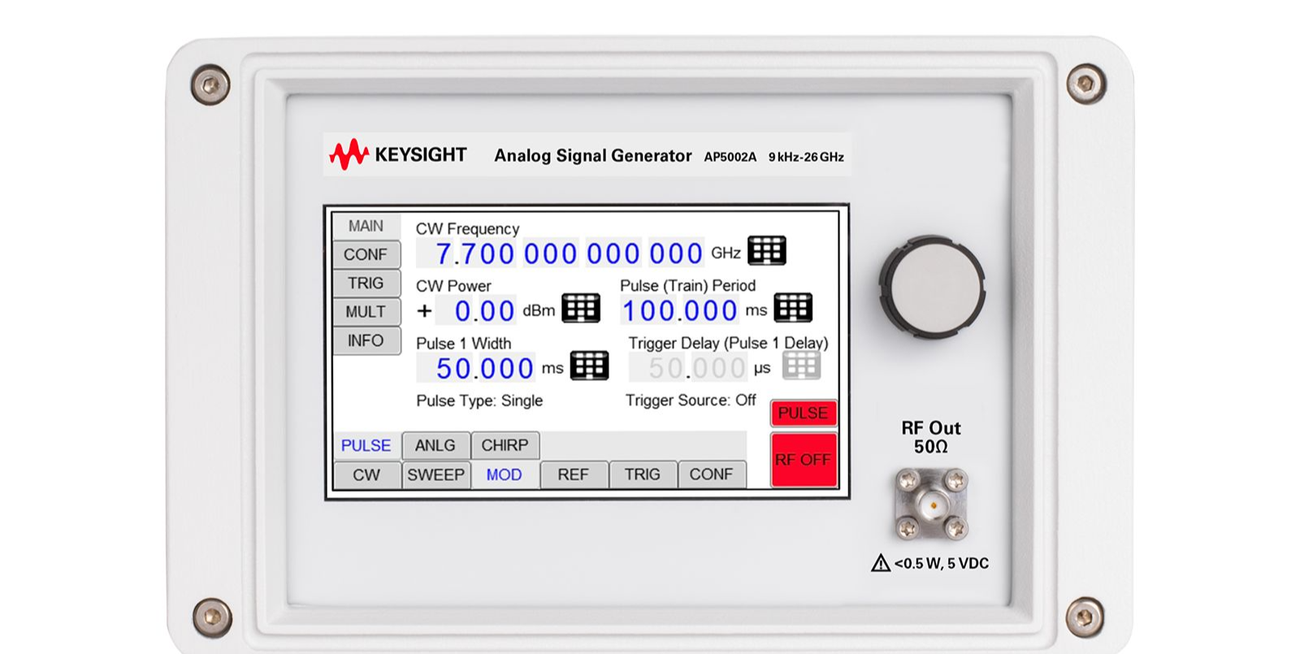

The Keysight AP5002A G2 analog signal generator covers radio and microwave frequency ranges from 9 kHz to 26 GHz with excellent signal purity and fast switching speed.
The AP5002A analog signal generator boasts incredible phase noise, wide output power range, fast switching speed, and extensive modulation capabilities all in a compact device. Use onsite or on the go wherever your electronic and wireless modules and systems testing takes you. Easily configure the signal generator using a touch-screen graphic user interface (GUI) or desktop software.
Experience the convenience of a compact, powerful testing tool with the Keysight AP5002A analog signal generator as your go-to radio frequency (RF) and microwave signal source.
| KEY FEATURES |
| Use for various RF and microwave applications with accurately leveled output power from -120 dBm to +23 dBm. |
| Measure accurately with OCXO stabilized signal (phase noise -130 dBc/Hz at 1 GHz, 20 kHz offset) with mHz resolution. |
| Boost throughput and accelerate testing with fast switching speed. |
| Leverage a range of extensive modulation capabilities such as AM, FM, PM, pulse modulation, pulse train, and frequency chirps. |
| Seamlessly operate with an optimized user interface—including an LCD touch screen and remote desktop software. |
| Upgrade licenses at any time for higher frequencies and additional options. |
| SPECIFICATIONS |
|
| Model: AP5002A |
|
| Feature | Parameters |
| Harmonics @ 1 GHz | -40 dBc |
| Output Power @1 GHz | +23 dBm |
| Phase Noise @1 GHz (20 kHz offset) | -130 dBc/Hz |
| Maximum Frequency | 26 GHz |
| Frequency Switching Speed | 200 µs |
| Number of Outputs | 1 |
| SPECIFICATIONS |
|
| AP5002A RF Microwave Signal Generator Model Overview |
|
| Model | Description |
| AP5002A-512 | Frequency Range, 9 kHz to 12 GHz |
| AP5002A-520 | Frequency Range, 9 kHz to 20 GHz |
| AP5002A-526 | Frequency Range, 9 kHz to 26 GHz |
| SPECIFICATIONS |
|
|
| AP5002A RF Microwave Signal Generator Option Overview |
|
|
| Model - Option | Description | Additional Information |
| AP5002A-1E1 | Step attenuator |
|
| AP5002A-1EA | High output power |
|
| AP5002A-UNQ | Band limited fast switching | not license upgradeable |
| AP5002A-UNZ | Fast switching | not license upgradeable |
| AP5002A-GPB | GPIB interface | not license upgradeable |
| AP5002A-S1E | 1U rack-mount module | not license upgradeable |
| AP5002A-1EM | Move RF output to rear panel | Requires option S1E, not license upgradeable |
| AP5002A-UK6 | Commercial calibration certificate with test data |
|
| AP5002A-MDH | 1 MΩ FM/PM input impedance | not license upgradeable |
| Y9611A | Rack mount kit, 3HU |
|
| Y9612A | Portable bag |
|
| Y9614A | External power bank adapter cable with voltage converter | For use with customer supplied power bank |
| AP5002AU-F01 | Frequency upgrade from 12 GHz to 20 GHz | License key only |
| AP5002AU-F02 | Frequency upgrade from 12 GHz to 26 GHz | License key only |
| AP5002AU-F03 | Frequency upgrade from 20 GHz to 26 GHz | License key only |
| AP5002AU-1E1 | Add step attenuator | License key only |
| AP5002AU-1EA | Add high output power | License key only |
