快速报价: Keysight Technologies Y1138A
Keysight Technologies Y1138A

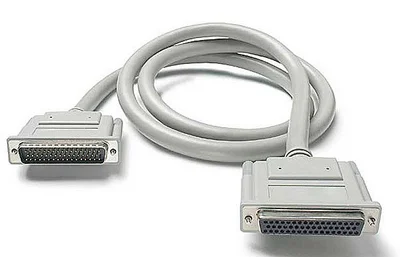

78-pin Dsub Cable; 3 m
型号
Y1138A产品类别
Multimeter制造商
Keysight Technologies配置型号包含以下特性:
MultimeterData AcquisitionCounters & Function GeneratorsData Acquistion配置
技术指标
产品总览
资源
让我们为您提供准确的配置
技术指标
请参考资源中的资料文档或查看产品总览。
如果您想了解更多，请 联系，我们的团队将为您提供帮助。
产品总览
M/F twisted pair with outer shield cable – 300 V Cables are used for direct cable connection to module. Some modules require 2 cables.
| Specifications | |
| Accessories | |
| Model Number | Description |
| Y1130B | Rackmount kit for 34980A, forward or reverse mount (must order either E3663AC rail kit for forward rack mounting or E3664AC rail kit for reverse rack mounting) |
| Y1131A | Verification and diagnostic tools for 34980A mainframe and modules (select option for specific module support) |
| Y1132A | Module extender for 34980A. Extends cable to locate module outside of mainframe 8710-2576 SMA Extender for connecting SMA connectors. |
| Specifications | |
Cables - Used for Direct Cable Connection to Module. Some Modules Require 2 Cables | |
| Model Number | Description |
| Y1134A | Row expansion cables for 34934C and 34934T |
| Y1135A | 1.5 m 50-pin Dsub, M/F twisted pair with outer shield cable – 300 V |
| Y1136A | 3 m 50-pin Dsub, M/F twisted pair with outer shield cable – 300 V |
| Y1137A | 1.5 m 78-pin Dsub, M/F twisted pair with outer shield cable – 300 V |
| Y1138A | 3 m 78-pin Dsub, M/F twisted pair with outer shield cable – 300 V |
| Specifications | |
| Connector Kits Used To Build Custom Cables | |
| Model Number | Description |
| Y1139A | Solder cup connector kit for 34921/23/25/31/32/33/37/38 –50-pin Dsub female – 125 V |
| Y1140A | Solder cup connector kit for 34922, 34924 – 78-pin Dsub female – 60 V |
| Y1141A | Solder cup connector kit for 34951, 34952 – 50-pin Dsub male – 125 V |
| Y1142A | Solder cup connector kit for the 34950A – 78-pin Dsub male – 60 V |
| Specifications | |
| 34945A Accessory Distribution Boards required for control of External Switches. One 34945EXT is required for each 64 Coils (included, add more 34945EXTs for additional coils). | |
| Model Number | Description |
| 34945EXT | External driver for 34945A, one required for each 64 coils –holds 4 distribution boards. Order Y1157A-Y1159A cable kits to connect from distribution boards to switches and attenuators |
| Y1150A | 34945EXT distribution board for 8 N181x SPDT switches |
| Y1151A | 34945EXT distribution board for two 87104x/106x L7x0xx multiport or 87406B matrix switches |
| Y1152A | 34945EXT distribution board for one 87204x/206x or 87606B switch and two N181x switches |
| Y1153A | 34945EXT distribution board for two 84904/5/6/7/8 or 8494/5/6 step attenuators |
| Y1154A | 34945EXT distribution board for two 87222, L7222C transfer switches and six N181x SPDT switches |
| Y1155A | 34945EXT distribution board w/ generic screw terminals for driving 16 switch coils |
| Y1157A | 9-to-10 pin cable kit for Y1150A, Y1152A, Y1154A - supplies to build 4 cables |
| Y1158A | 10-to-10/10-to-14 pin cable kit for Y1153A, Y1154A - supplies to build 2 cables |
| Y1159A | 6-to-16 pin cable kit for 1150A/51A/52A/53A/54A/55A - supplies to build 2 cables |
