| MP5000 Modular Precision Test System |
|
| Product/Series description (short) | Key Features/Benefits |
| The MP5000 Series is a high-density, modular test platform designed for automated validation and production environments. With up to 6 SMU/PSU channels in a 1U chassis, native Python drivers, and the intuitive TSP Toolkit IDE, it delivers unmatched flexibility, performance, and automation for semiconductor, optoelectronics, and mission-critical applications. | Modular Architecture
-1U rack-mountable chassis with 3 rear-access module slots
-Supports up to 6 channels per chassis
-Mix-and-match SMU and PSU modules for flexible configurations
-Swappable modules without removing/powering down the mainframe
Advanced Automation & Software
-TSP Toolkit:
-Visual Studio Code-based IDE
-On-instrument script debugging
-Automated TSP script generation with channel sync
-Driver Support: Python & IVI
-Web Interface: Browser-based control and monitoring
-Connectivity & Integration:
-TSP-Link: Synchronize up to 32 mainframes
-18 Digital I/O pins for hardware handshaking
-USB 3.0 and 1 Gigabit Ethernet for fast data streaming |
| Product/Series description (long) |
|
| The MP5000 Serie is Tektronix’s next-generation modular precision test platform engineered to meet the evolving demands of automated test equipment (ATE) in validation and production workflows. Designed with a compact 1U form factor, it supports up to six SMU or PSU channels per chassis and scales to 192 channels in parallel—maximizing rack space, throughput, and test flexibility. |
|
|
|
| Key Applications |
|
Semiconductor validation and reliability testing
Optoelectronics (VCSEL, LED, laser diode characterization)
Aerospace and defense system functional testing
High-density production test environments |
|
|
|
| Specifications | Ships with: |

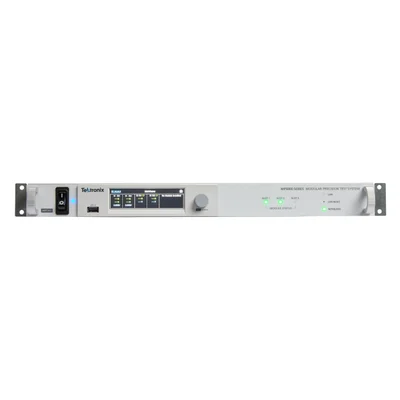

Mainframe (MP5103):
-Form Factor: 1U rack-mountable chassis
-Module Slots: 3 rear-access slots
-Channel Density: Up to 6 channels per chassis (2 channels per module)
-Scalability: Up to 32 mainframes via TSP-Link
-Digital I/O: 18 pins for hardware handshaking
-Interfaces: USB 3.0, 1 Gigabit Ethernet
-Web Interface: Built-in, browser-based control and monitoring
-Software Support: Python, LabVIEW, IVI, SCPI-compatible via TSP
TSP Toolkit:
-Visual Studio Code-based IDE
-On-instrument script debugging
-Automated TSP script generation with channel sync
-Python API integration | Included with Mainframe (MP5103):
-MP5103 1U Modular Mainframe
-Fixed 1U Rack Mount Kit (Part #: 4299-15)
-Digital I/O Terminal Block (Part #: 174745100)
-Interlock Connector (Part #: 133062300)
-Power Cord (region-specific)
-Quick Start Guide / Safety Manual
-Web Interface Access Instructions
Software & Drivers:
-TSP Toolkit (Base Version) – Visual Studio Code-based IDE
-Python & IVI Drivers
-Utilize TSP commands
-Access to Online Documentation and Example Scripts |
|
|
| Recommended accessories (see datasheet for full list) | Recommended Probes (see datasheet for full list) |
Mainframe (MP5103):
Part number Description
4299-15 Fixed 1U Rack Mount Kit
174745100 Digital I/O Terminal
133062300 CS-1616-3 Interlock Connector | N/A |
|
|
|
|
| Recommended Instrument Options (see datasheet for full list) | Service Options (see datasheet for full list) |
| N/A | R3, R5, T3, T5, C3, C5, D1, D3, D5 |
|
|
|
|
| Alternative Products | Recommended Software Options/Enhancements |
| 2600 Series SMUs | TSP Toolkit |
|
|
| Product Characteristics | Other products that might interest you |
MP103 (Mainframe)
length 624mm (24.6") x width 483mm (19") x height 44mm (1.73")
"12.8 - Kilograms/28 - Pounds" | Keithley 2600 Series SMUs
Keithley DMMS |
