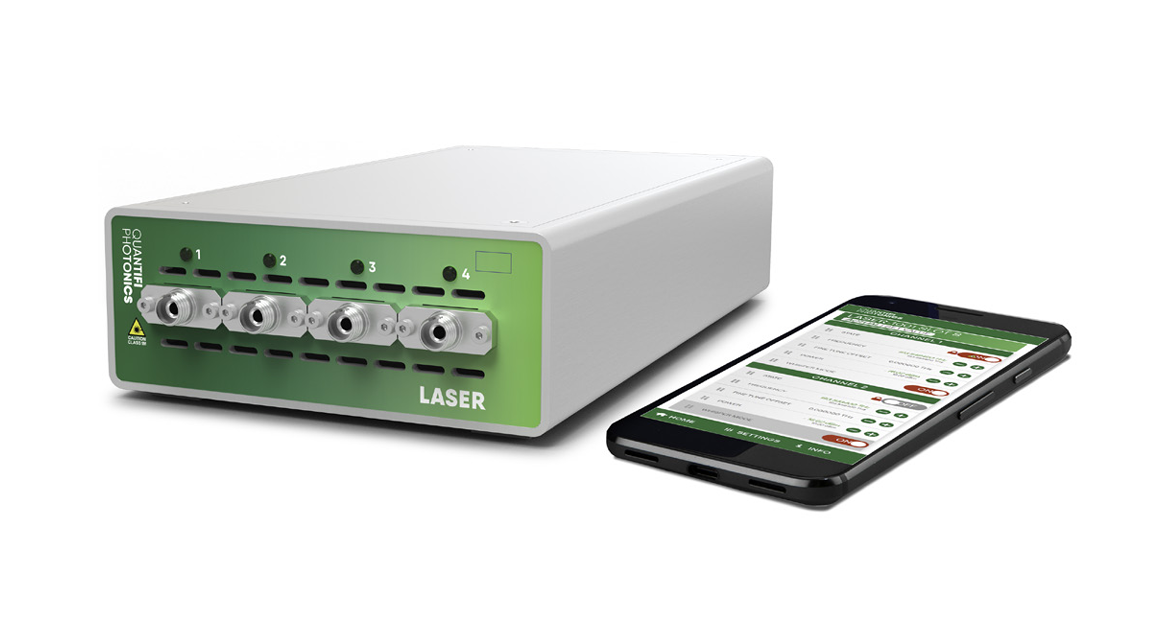

Quantifi Photonics LASER-1052-4-FA-MTRQ

Tunable Laser Source; with Whisper Mode, 4 Channels, FC/APC, 1527 to 1568 nm

Modèle

LASER-1052-4-FA-MTRQ

Gamme de produits

Network & Fiber Installations

Fabricant

Quantifi Photonics

Cette configuration a les caractéristiques suivantes:

Network & Fiber InstallationsFiber Optic Light Sources

Configurations

Caractéristiques principales

Description produit

Ressources

Laissez-nous vous conseiller sur la configuration exacte

Cliquez sur 'Configurez votre produit' et nous vous contacterons pour vous adresser un devis conforme à votre besoin.

Vous pouvez cliquer sur Contactez-moi, si vous préférez, et nos experts vous guideront vers la bonne solution technique et financière.

Description produit

The LASER-1052-4-FA-MTRQ is in the MARTIX instrument format and provides the same high-performance test capabilities of the PXIe modules in an compact benchtop design. MATRIQ instruments are simple to setup and easy to operate, making them the perfect choice for your optical lab or test bench.

The LASER-1052-4-FA-MTRQ also comes with Whisper Mode. This feature enables the user to temporarily disable the laser control frequency dither, which is useful for applications that require the narrowest linewidth. Disabling the frequency dither disables the laser frequency and power regulation and may cause them to drift over time. The whisper mode is only intended to be used over a short time, typically less than 10 minutes. All Quantifi Photonics tunable lasers adhere to the OIF standard Micro Integrated Tunable Laser Assemblies (μITLA) Implementation Agreement and utilize the standard dithering method for frequency stability.

The Laser 1000 Series is a Continuous Wave (CW), tunable laser source offering high-power output, narrow 100 kHz linewidth and 0.01 pm resolution tunability.

The Laser 1000 Series is a fully-compliant micro-ITLA laser with up to four channels in a compact benchtop form factor. Offering 0.01 pm resolution tunability across C or L bands, exceptional power accuracy up to 16.5dBm, and optional dither suppression, this is a versatile and cost-effective general purpose instrument.

The Laser 1000 Series comes with optional whisper mode. This feature enables the user to temporarily disable the laser control frequency dither, which is useful for applications that require the narrowest linewidth. All of our tunable lasers adhere to the OIF standard Micro Integrable Tunable Laser Assemblies (μITLA) Implementation Agreement and utilise the standard dithering method for frequency stability.

Benefits
Full Tunability across C Band or L Band	Ideal for telecommunications applications; full coverage of DWDM channels.
Smarter Calibration for Enhanced Power Uniformity	Minimize inter-channel power variance with enhanced power uniformity between channels.
0.01pm Tuning Resolution	Tune to anywhere within C or L band with a high 0.01pm tuning resolution.
Narrow 100kHz Linewidth, up to 16.5 dBm of Power	High stability 100kHz linewidth makes it an ideal candidate for some of the most demanding applications, such as coherently modulated high-speed communications.
Polarization Maintaining Output	The slow axis of polarization is aligned with the output connector key as per industry standards. The user may choose to use polarization maintaining (PM) fiber or standard singlemode fiber (SMF).
Powerful Software Controls	The Laser 1000 Series is fully programmable via industry standard SCPI protocols and drivers are available for Python and LabVIEW. It also comes with an easy-to-use GUI that can be used on any device with a modern web browser.
USB or Ethernet Operation	Connect via USB or Ethernet for simple setup and operation.
Excellent Measurement Correlation with our Optical PXI Modules	Shared product architecture lets you validate your system and test requirements in the lab with the benchtop version, and scale up to high-volume automated production testing with the Laser 1000 Series PXIe module.

Applications

Coherent optical transceiver development and testing

Optical component development and testing:

Optical splitters

Optical couplers

Optical Demultiplexers / Multiplexers

Optical modulators

Optical resonators

MEMs testing

Bragg Filter testing

Fiber optic transmission testing

Local oscillator for Tx and Rx coherent transceivers

WDM / DWDM channel loading stress test

Silicon photonic wafer waveguide testing

EDFA optical amplifier testing

Photonic Doppler Velocimetry (PDV) laser source

Interferometry (broad field; includes medical imaging via interferometry, Mach-Zehnder instruments)

High Performance Computing (HPC) with optical PIC-based semiconductors: channel loading

General purpose stable light source for telecom and physics

PXIe / MATRIQ Overview

PXIe

Modular

Our expanding range of PXIe optical test solutions are used by customers in mixed-signal test and measurement systems, reducing complexity, lowering the cost of test and accelerating time to market.

Features:

Multi vendor, open standard with over 2500 PXI modules available.

Advanced timing and synchronization capabilities across instruments.

Low latency, high performance processing and fast data throughput.

Design and build scalable, high channel count systems.

Small footprint and lower power consumption

MATRIQ

Compact and Portable

The MATRIQ series provides the same high-performance test capabilities of our PXIe modules in an compact benchtop design. MATRIQ instruments are simple to setup and easy to operate, making them the perfect choice for your optical lab or test bench.

Features:

Same performance and control as our PXIe modules.

Plug and play with USB or Ethernet connectivity.

Control via the web-based GUI, COHESIONUI or SCPI commands.

Compact and portable design saves benchtop space

Specifications
1000 Series Tunable Laser Source
Model Overview
Model Type	Pxi	Matriq
Bus Connection	PXIe	USB and Ethernet
Optical Connector Type	FC/PC FC/APC SC/PC SC/APC	FC/PC FC/APC SC/PC SC/APC
Number of Channels	1, 2 or 4	1, 2 or 4
Slot Count	1	--
Dimensions (HxWxD)	130 x 20 x 215 mm 5.1 x 0.8 x 8.5 inches	53 x 120 x 202 mm 2.1 x 4.7 x 8.0 inches
Weight	~ 1 kg ~ 2.2 lbs	~ 1.1 kg ~ 2.4 lbs
Operating Temperature Range	5 °C to 45 °C 41 °F to 113 °F	5 °C to 45 °C 41 °F to 113 °F
Storage Temperature Range	-40 °C to 70 °C -40 °F to 158 °F	-40 °C to 70 °C -40 °F to 158 °F

Specifications
1000 Series Tunable Laser Source
Model Overview
Model (LASER-XXXX)	Description
1001	1527 to 1568 nm, 8 - 13 dBm
1002	1527 - 1568 nm, 8 - 15 dBm
1003	1568 - 1611 nm, 8 - 13.5 dBm
1004	1527 - 1568 nm, 8 - 16.5 dBm
1005	1568 - 1611 nm, 8 - 15.4 dBm
1007	Ch 1: 1527 - 1568 nm Ch 2: 1568 - 1611 nm, 8 - 13.5 dBm
1051	1527 to 1568 nm, 8 - 13 dBm With Whisper Mode
1052	1527 - 1568 nm, 8 - 15 dBm With Whisper Mode
1053	1568 - 1611 nm, 8 - 13.5 dBm With Whisper Mode
1054	1527 - 1568 nm, 8 - 16.5 dBm With Whisper Mode
1055	1568 - 1611 nm, 8 - 15.4 dBm With Whisper Mode
1057	Ch 1: 1527 - 1568 nm Ch 2: 1568 - 1611 nm, 8 - 13.5 dBm With Whisper Mode
Number of Channels (LASER-XXXX-X)
1	1 channel
2	2 channels
4	4 channels
Connector Type (LASER-XXXX-X-XX)
FC	FC/PC
FA	FC/APC
SC	SC/PC
SA	SC/APC
Modular / Compact & Portable (LASER-XXXX-X-XX-XXXX)
Laser-XXXX-X-XX-PXIE	PXI - Modular
Laser-XXXX-X-XX-MTRQ	MATRIQ - Compact & Portable
