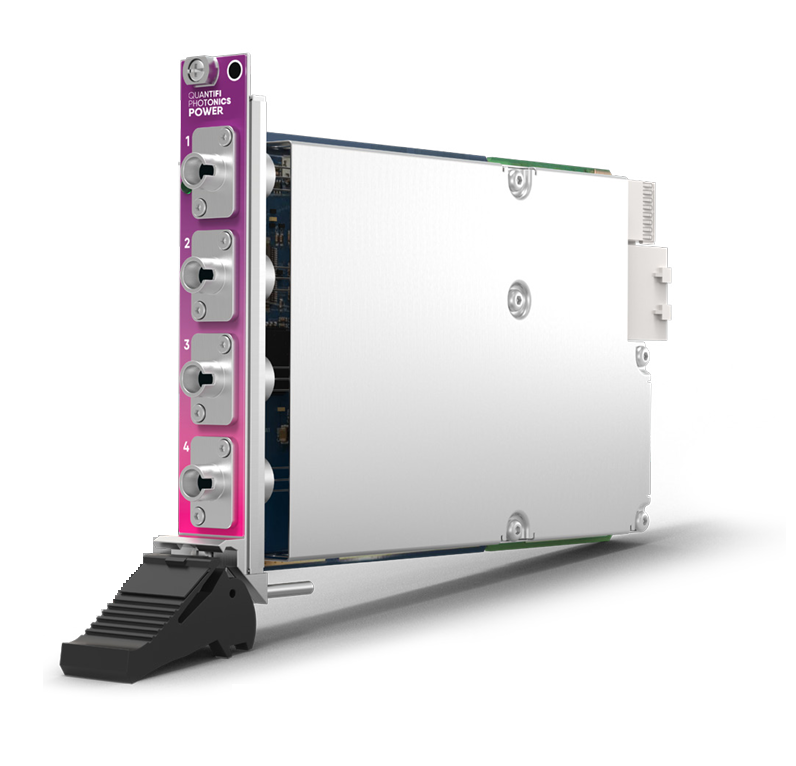

Quantifi Photonics POWER-1401-4-FC-PXIE

Optical Power Meter; PXIe, 4 Channel, 750 nm to 1700 nm, FC Connector

Modèle

POWER-1401-4-FC-PXIE

Gamme de produits

Network & Fiber Installations

Fabricant

Quantifi Photonics

Cette configuration a les caractéristiques suivantes:

Network & Fiber InstallationsFiber Optic Power Meters

Configurations

Caractéristiques principales

Description produit

Ressources

Laissez-nous vous conseiller sur la configuration exacte

Cliquez sur 'Configurez votre produit' et nous vous contacterons pour vous adresser un devis conforme à votre besoin.

Vous pouvez cliquer sur Contactez-moi, si vous préférez, et nos experts vous guideront vers la bonne solution technique et financière.

Description produit

The Power 1400 Series optical power meter provides fast monitoring of signal power from -60 to +10 dBm and broad wavelength range of 750 to 1700 nm. With a logarithmic amplifier, it avoids gain-jumps faced by multi-stage linear amplifier power meters.

Benefits
Data Logging Capability	Data logging of up to 1024 samples is available on 2 channels, so you can capture transient events with ease.
Single Logarithmic Amplifier	Use of a logarithmic amplifier eliminates the gain jumps exhibited by power meters with multi-stage linear amplifiers. Get consistent and reliable measurement at all power levels.
Simple, Intuitive Operation with CohesionUI	Control the Power-PXIe from your PC or mobile device. Plus, large format view mode makes it easy to monitor your instrument even when working away from your desk.
Seamless PXI Integration	Take advantage of PXI’s integrated triggering and synchronization capabilities across electrical and optical instruments.
2 or 4 Power Meters in a Single Instrument	Achieve high channel density with up to 68 channels in an 18-slot PXI chassis or 4 channels in an ultra compact benchtop instrument.

Applications

Fiber optic manufacturing test

Power measurement integration for automated test systems

Fiber optic laser test and characterization

General and versatile R&D and production tool

Specifications
1400 Series Optical Power Meter
Model Overview
Model	PXI	MATRIQ
Bus Connection	PXIe	USB and Ethernet
Slot Count	1 slot: 1401 2 slots: 1405	-
Number Of Channels	2 or 4	2 or 4
Dimensions (H x W x D)	1 slot: 130 x 20 x 215 mm 5.1 x 0.8 x 8.5 inches 2 slot: 130 x 40 x 215 mm 5.1 x 1.6 x 8.5 inches	53 x 120 x 202 mm 2.1 x 4.7 x 8.0 inches
Weight	~ 1 kg ~2.2 lbs	~ 1.1 kg ~ 2.4 lbs
Operating Temperature Range	5 °C to 45 °C 41 °F to 113 °F	5 °C to 45 °C 41 °F to 113 °F
Storage Temperature Range	-40 °C to 70 °C -40 °F to 158 °F	-40 °C to 70 °C -40 °F to 158 °F

Specifications
1400 Series Optical Power Meter
Model Overview
Model (POWER-XXXX)	Description
1401	FC/APC FC/PC SC/PC SC/APC connector 750 nm to 1700 nm
1405	MPO connector 800 nm to 1700 nm
Number of Channels (POWER-XXXX-X)
2	2 channels
4	4 channels
*Connector Type (POWER-XXXX-X-XX)**
FC	FC
SC	SC
MP	MPO
Modular / Compact & Portable (POWER-XXXX-X-XXXX)
POWER-XXXX-X-XX-PXIE	PXI - Modular
POWER-XXXX-X-XX-MTRQ	MATRIQ - Compact & Portable

Note:

* Because it is a free-space launch into a large area detector that captures all the light, the FC connector is compatible with FC/APC type inputs and the SC is compatible with SC/APC inputs.

Specifications
1400 Series Optical Power Meter
PXIe/MATRIQ Overview
PXIe Modular	Our expanding range of PXIe optical test solutions are used by customers in mixed-signal test and measurement systems, reducing complexity, lowering the cost of test and accelerating time to market. Features: Multi vendor, open standard with over 2500 PXI modules available. Advanced timing and synchronization capabilities across instruments. Low latency, high performance processing and fast data throughput. Design and build scalable, high channel count systems. Small footprint and lower power consumption
MATRIQ Compact and Portable	The MATRIQ series provides the same high-performance test capabilities of our PXIe modules in an compact benchtop design. MATRIQ instruments are simple to setup and easy to operate, making them the perfect choice for your optical lab or test bench. Features: Same performance and control as our PXIe modules. Plug and play with USB or Ethernet connectivity. Control via the web-based GUI, COHESIONUI or SCPI commands. Compact and portable design saves benchtop space
