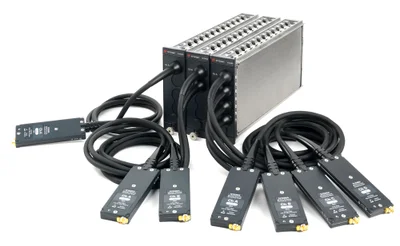

N1046A remote sampling heads are modules for your N1000A DCA-X mainframe and are being engineered for uncompromised performance to 100 GHz and beyond.
The N1046A remote sampling heads are modules for your N1000A DCA-X mainframe. Like all of Keysight's DCA modules, the N1046A provides a wide range of configurations and performance options to interchange the bandwidth, channel count, and features of your oscilloscope solution.
| KEY FEATURES |
| 75, 85, or >100 GHz maximum bandwidth available (upgradeable) |
| 1, 2, or 4 channels per module (user-selectable option) |
| High bandwidth and low-noise samplers, ideal for analyzing 224 Gb/s high-speed signals |
| Electrical inputs: 1 mm female (1.0 female to 1.85 female adapters included), sample rate 250 kSa/s |
| BENEFITS |
|
| The N1046A DCA-X module offers you unprecedented performance in a configurable platform. | Highest-bandwidth equivalent time sampling oscilloscope.
Smallest oscilloscope remote heads, enabling direct or near-direct connection from the instrument to your DUT to maximize signal integrity.
Configure to meet your specific needs from 1 to 16 channels with bandwidths of 75 GHz, 85 GHz, or > 100 GHz.
Bandwidth upgradeable so you can buy what you need today and upgrade to more performance as you need it.
|
| SPECIFICATIONS |
|
| Model: N1046A Electrical Remote Sampling Head Module |
|
| Feature | Parameter |
| Applications | DCA-X Electrical Remote Head Module |
| Operating System | Windows 10 |
| Maximum Memory Depth | N/A |
| Supported Filter Range | 22.5 GHz to 130 GHz |
| Bandwidth Options | Up to 100 GHz |
| Electrical Channels | 4 |
| Optical Channels | 0 |
| Number of Channels | 1 electrical, 2 electrical, 4 electrical |
| Module Type | Electrical |
| Form Factor | Module |
| Instrument Type | Equivalent-Time |
| Type | Equivalent-Time |
| Maximum Bandwidth | 100 GHz |
| Bandwidth | >100 GHz |
| Wavelength Range | N/A |
| Intrinsic Jitter | 90 fs rms |
| Maximum Sample Rate | 250000 |
| Input Type | 1.0 mm |
| Maximum Electrical Bandwidth | 100 GHz |
| Maximum Optical Bandwidth | N/A |
| SPECIFICATIONS |
|
| Model: N1046A Electrical Remote Sampling Head Module Overview |
|
| Model-Option | Description |
| N1046A | 75/85/100 GHz 1/2/4 Port Electrical Remote Sampling Head 1 |
| N1046A-11F | 100 GHz, 1 Channel Remote Head, 1 mm, Female |
| N1046A-71F | 75 GHz, 1 Channel Remote Head, 1 mm, Female |
| N1046A-81F | 85 GHz, 1 Channel Remote Head, 1 mm, Female |
| N1046A-12F | 100 GHz, 2 Channel Remote Head, 1 mm, Female |
| N1046A-72F | 75 GHz, 2 Channel Remote Head, 1 mm, Female |
| N1046A-82F | 85 GHz, 2 Channel Remote Head, 1 mm, Female |
| N1046A-14F | 100 GHz, 4 Channel Remote Head, 1 mm, Female |
| N1046A-74F | 75 GHz, 4 Channel Remote Head, 1 mm, Female |
| N1046A-84F | 85 GHz, 4 Channel Remote Head, 1 mm, Female |
| N1046A-C0C | Certificate of calibration |
| N1046A-UK6 | Commercial calibration certificate with test data |
| N1027A-46A | Accessory kit for two N1046A channels |
NOTE:
1 Module includes a custom System Impulse Response Correction (SIRC) file for each channel.
| SPECIFICATIONS |
|
| DCA-X Modules Series Overview |
|
| Model | Description |
| N1000A | Infiniium DCA-X mainframe |
| 86100D | Infiniium DCA-X Wide-Bandwidth Oscilloscope Mainframe |
| Optical Electrical Modules * |
|
| N1030A | Single 65 GHz optical channel, 9/125 μm fiber input |
| N1030B | Two 65 GHz optical channels, 9/125 μm fiber input |
| N1032A | Single 120 GHz optical channel, 9/125 μm fiber input |
| N1032B | Two 120 GHz optical channels, 9/125 μm fiber input |
| Dual/ Quad Electrical Channel Modules * |
|
| N1040A | Dual electrical channel module |
| N1045B | 2/4 port 60 GHz electrical remote head |
| N1046A | 100 GHz, 1/2/4 port electrical remote sampling head |
| TDR/TDT Modules * |
|
| N1055A ¹ | 35/50 GHz 2/4 Port electrical remote head module with TDR/TDT |
| Precision Waveform Analyzer Module * |
|
| N1060A | Precision waveform analyzer ² (6) |
| External Clock Recovery Solutions Module * |
|
| N1076B | Electrical clock recovery |
| N1077A | Optical/electrical clock recovery |
| N1077B | Optical/electrical clock recovery |
| N1078A | Optical/electrical clock recovery |
| DCA-M Sampling Oscilloscope Module * |
|
| N1090A | Optical sampling oscilloscope |
| Optical DCA-M Sampling Oscilloscope Module * |
|
| N1092A/B/D | Single optical channel oscilloscope |
| N1092B | Dual optical channel oscilloscope |
| N1092D | Quad optical channel oscilloscope |
| N1092C | Single optical, dual electrical channel oscilloscope |
| N1092E | Dual optical, dual electrical channel oscilloscope |
| Electrical DCA-M Oscilloscope Module * |
|
| N1094A | Dual electrical channel oscilloscope |
| N1094B | Quad electrical channel oscilloscope |
Note:
* Please See Data Sheet in Resources for module options
¹ When used in an 86100D, 86100D option ETR is recommended if more than one TDR module is connected to the same DUT
² Module includes a custom System Impulse Response Correction (SIRC) file for each channel .
