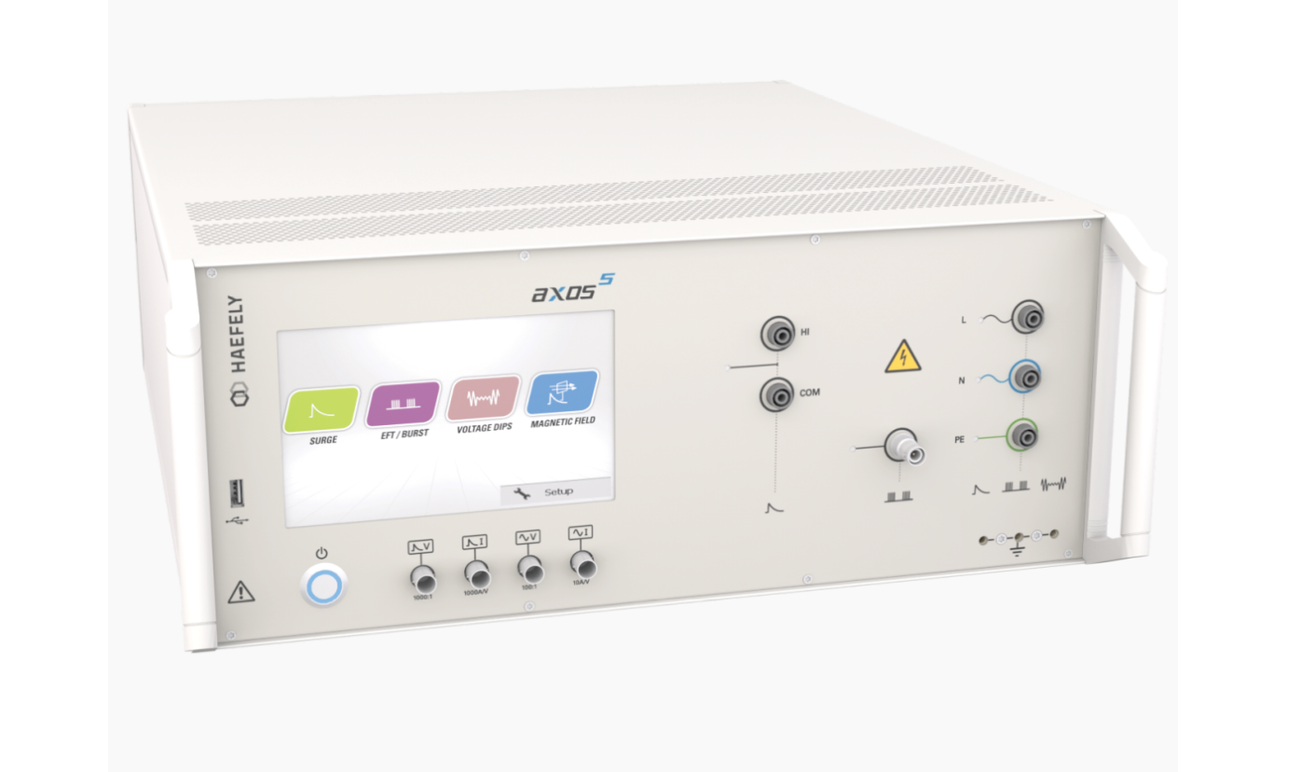

Haefely AXOS 5 (2490400)

The new AXOS 5 - Compact integrates all of the best features of our stand alone test systems into one single economic solution. It is capable of 5kV EFT/Burst, 5 kV Combination Wave (1.2/50 us & 8/20 us), AC/DC Dips & Interrupts (requires the DIP 116) and Pulsed Magnetic Field (requires the MSURGE-A).

The unit also includes an integrated single-phase coupling decoupling network (CDN) for EMC testing applications up to 16 A. The expandable functionality allows for quick and completely automated testing to the most common IEC, EN, ANSI, IEEE and UL standards. The AXOS unit can either be operated via front panel by large color graphic interface or remotely from the PC. The easy to use menu together with the availability of predefined test routines for different standards makes testing easy and reliable, even for less frequently users. Numerous additional functions such as external start/stop function allows easy integration of the test system also in customer specific test environments.

Key Features:

• Safe and reliable operation by using safety interlock, warning lamp and emergency stop functions
• Voltage and current monitoring of surge impulses and EUT power provides valuable feedback to the test engineer
• Automatic generation of test report, including test parameters, test setup and test result
