Keysight high performance DC power supplies offer speed and accuracy for test optimization. The single output, 80-100 W, GPIB 6631B-6634B provide fast, low-noise outputs; programmable active down-programmer sinks the full rated current; dual-range, precision low current measurement; as well as optional isolation and polarity reversal relays.

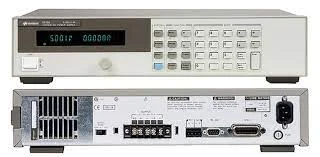

The Keysight 100W, GPIB, single output 6634B is a versatile medium-power solution for automated applications that reduces development time with a combination of benchtop and system features designed for demanding design and test requirements.
| Key Features |
|
| Output Ratings | Output voltage: 0 to 100 V
Output current: 0 to 1 A
|
| Programming Accuracy at 25°C ±5°C | Voltage: 50 mV
+ Current 0.05% + 0.5 mA
|
| Ripple & Noise (20 Hz to 20 MHz) | Voltage Normal mode rms: 0.5 mV
Voltage Normal mode peak-to-peak: 3 mV
Fast mode rms/peak-to-peak: 2 mV/25 mV
Current rms: 2 mA
|
