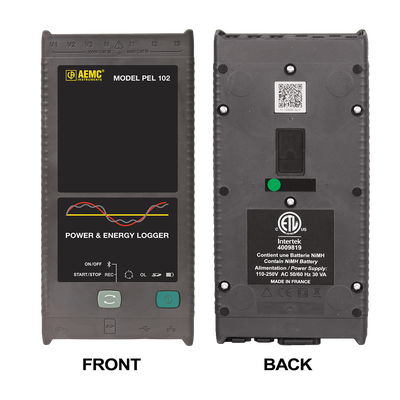

The PEL 102 is a low cost, simple to use, one, two (split phase) and three phase (Y, Δ) power/energy data logger. This product is ideal for electricians, engineers and contractors doing work in the area of building and system monitoring and upgrades, as well as residential and overall energy audits. All vital energy data is easily measured, recorded, and analyzed. Reports can be generated with confidence with minimal configuration time and effort (Standard and Customizable Reports supplied).
The instrument’s design enables it to be installed inside a load center panel (including the current sensors) allowing the door to close on most panels. The PEL 100 series offers all the essential functions for logging power/energy data from most electrical power networks in use today across the world (17 network set-ups provided). The PEL 100 series energy loggers measure and record three True RMS voltage inputs and current inputs, Watts, VARS, VA and Energy (kWh and kVA). Power Factor (PF), Displacement Power Factor (DPF), Crest Factor, Frequency and THD are calculated and recorded as well. Individual harmonic % information from 1 to the 50th harmonic are recorded at the operator’s choice. All variables are recorded and stored at a one second interval and on user selectable demand intervals from 1 to 60 minutes.
Key Features |
Simple-to-use, single-, dual- (split-phase) and three-phase (Y, delta) power (Y,△) power & energy loggers |
Designed to work in 1000V CAT III and 600V CAT IV environments and fits in many distribution panels |
Power measurements: kVA, kW and kvar |
Energy measurements: kVAh, kWh (source, load) and kvarh (quadrant indication) |
Updated features in DataView© software for configuring real-time communication with a PC and report generation with pre-defined or user defined templates |
8GB SD card supplied, can be upgraded up to 32GB |
USB, LAN, Ethernet and Bluetooth (Class 1 wireless communication, up to 300 ft away) |
Satisfies the monitoring requirements of NEC Code 220.87 |
Power adapter allows the PEL 102 to be powered from a phase measurement input |
Provides all the necessary functions for power and energy data logging for 50Hz, 60Hz, 400Hz and DC distribution systems |
Automatic recognition of the connected current sensors/probes |
Magnetic case – can be mounted inside power panel |
