An optical power meter (OPM) is the primary test instrument for fiber optic networks—measuring optical signal power is an essential task for any fiber technician. However, as requirements for testing and certifying optical networks expand, technicians need their OPM to not just measure optical power, but also to document results and generate reports. Moreover, the rapid expansion of fiber into new applications has created an influx of technicians that are new to fiber optic technology.

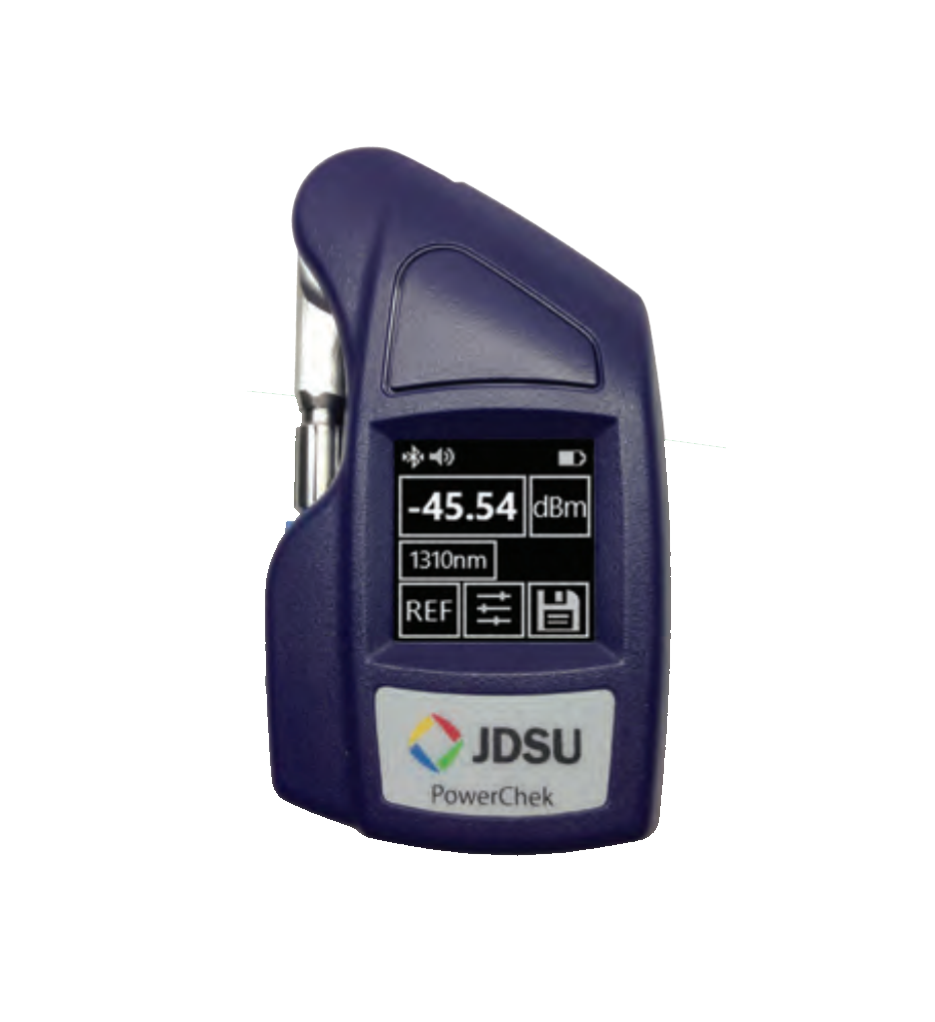

PowerChek is an innovative OPM that lets fiber technicians measure optical power without the need for a test lead. Instead, users attach interchangeable PowerChek connectors that engage safely to the bulkhead port without risking cross contamination or damage to the fiber endface. It is a compact, intuitive, and reliable OPM equipped with a touch-screen display and onboard storage so users can measure data and store readings much faster than with traditional power meters. PowerChek is also Bluetooth enabled for pairing with various devices including mobile phones, tablets, PCs, and other JDSU test equipment, letting technicians quickly measure power, store data, generate reports, and share their results.
Kit contains:
PowerChek OP-1, with the following connectors: SC, SC-APC, LC
Key Features:
- Interchangeable connectors connect directly to bulkhead port
- Supports multiple connector types including SC, LC, and SC-APC
- Pairs with other devices via Bluetooth • Stores up to 125 test results on the device
- Measures wavelengths ranging from 780 to 1625 nm
- Micro-USB port for PC connection to FiberChekPRO or charging
- Compatible with FiberChekPRO and FiberChekMOBILE
- Re-chargeable Li-ion battery for 12 hours continuous use
- Touch screen
