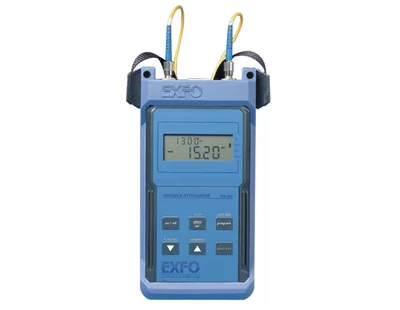

EXFO FVA-60B
Variable Attenuator
Model
FVA-60BProduct Family
Network & Fiber InstallationsManufacturer
EXFOConfigured models contain the following attributes:
Network & Fiber InstallationsFiber Optic AttenuatorsConfigurations
Key Specs
Product Overview
Resources
Let us help you with your exact configuration
Please use 'Get Quick Quote' and we’ll contact you and quote for your exact need.
You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.
Key Specs
Please refer to the Resources section for Datasheets or see the Product Overview.
If you would like to know more, please get in touch and one of our team will be happy to help.
Product Overview
This portable variable attenuator performs just as well in a laboratory environment as it does in the field. Superior specifications make it the variable attenuator of choice for several applications. For lab or fieldwork flexibility, choose the FVA-60B.
| Key Features |
| Up to 65 dB attenuation |
| Typical 2.5 dB insertion loss |
| Automatic attenuation sequence with Program mode |
| Standard Universal Interface |
| Benefits | |
| Program Mode: | Cycles through a repeatable sequence of up to 60 attenuation steps, pausing for one second or up to 60 hours at a time. The Program mode is particularly suited to accelerated bit-error-rate (BER) testing. |
| Fourteen Available Wavelengths | Matches your source wavelength to the nearest 10 nm for unbeatable accuracy. |
| Variable Scanning Speed: | Scans the complete attenuation range at four different speeds according to the selected step size (0.05, 0.20 or 1.00 dB/step and variable step size). |
| Remote Control Capability: | Operate the FVA-60B remotely from your PC using the standard RS-232 interface and control codes. Program software solutions are adapted to your testing needs. |
| Three-Way Powering: | The FVA-60B features three complementary power sources for extended operation: a rechargeable NiCad battery, a 9 V alkaline backup battery and an AC adapter/charger for continuous operation. |
| Exceptional Specifications: | High-quality optical components make the FVA-60B Variable Attenuator the standard for performance and flexibility. EXFO’s computer-assisted calibration techniques deliver remarkable specifications: ± 0.15 dB linearity 0.05 dB resolution ± 0.10 dB repeatability |
| Applications | |
| The FVA-60B enables consistent operation in various manual or automated testing situations. | BER testing System testing and acceptance Power meter calibration and verification Optical margin analysis System loss simulation Field, manufacturing and R&D applications |
| Specifications a | ||
| FVA-60B Variable Attenuator | ||
| Model Overview | ||
| Model | FVA-60B-C-XX | FVA-60B-D-XX |
| Fiber Type (µm) | 50/125 | 62.5/125 |
| Calibration Wavelengths (nm) | 850/1300 | 850/1300 |
| Attenuation Maximum (dB) | 65 | 65 |
Insertion Loss b, c (dB) Typical Maximum | 2.5 4.0 | 2.5 4.0 |
| Resolution (dB) | 0.05 | 0.05 |
| Linearity d (dB) | ± 0.15 | ± 0.15 |
Repeatability (dB) Typical Maximum | ± 0.03 ± 0.10 | ± 0.03 ± 0.10 |
Return Loss b (dB) Typical Maximum | 27 20 | 27 20 |
| Max. Input Power (dBm) e | 15 | 15 |
Notes:
a. At 23 °C ± 2 °C unless otherwise specified.
b. At calibrated wavelengths
c. With FC/PC connector.
d. At a calibrated wavelengths, using a non-polarized light source with 0.002 dB stability (source accuracy of ± 0.5 nm) and up to 50 dB of attenuation.
e. Typical value. Prolonged exposure may damage the unit.
| Specifications | ||
| FVA-60B Variable Attenuator | ||
| Model Overview | ||
| Model | FVA-60B-C-XX | FVA-60B-D-XX |
| Size | 220mm x 110mm x 50mm (8.75 in x 4.5 in x 2 in) | 220mm x 110mm x 50mm (8.75 in x 4.5 in x 2 in) |
Weight Unit Shipping | 0.75 kg (1½ lb) 2.5 kg (5.½ lb) | 0.75 kg (1½ lb) 2.5 kg (5.½ lb) |
Temperature Operating Storage | -10 °C to 50 °C (14 °F to 122 °F) -30 °C to 70 °C (-22 °F to 158 °F) | -10 °C to 50 °C (14 °F to 122 °F) -30 °C to 70 °C (-22 °F to 158 °F) |
| Relative Humidity | 0 % to 95 % non-condensing | 0 % to 95 % non-condensing |
| Power | AC charger (continuous operation), NiMH (5 to 25 hours depending on usage). 9V alkaline batteries (3 to 10 extra hours depending on usage) | AC charger (continuous operation), NiMH (5 to 25 hours depending on usage). 9V alkaline batteries (3 to 10 extra hours depending on usage) |
| Speed | 0 to 70 dB in 10 seconds at maximum scan rate | 0 to 70 dB in 10 seconds at maximum scan rate |
Note:
14 wavelengths available, of which two can be picked for quick toggling.
Multimode (nm) 820, 830, 840, 850, 860, 870, 880, 1270, 1280, 1290, 1300, 1310, 1320, 1330
| Specifications | |
| FVA-60B Variable Attenuator | |
| Model Overview | |
| Model / Part Number | Description |
| FVA-60B-X (Fiber Code) | |
| C | 50/125 µm multimode |
| D | 62.5/125 µm multimode |
| FVA-60B-X-XX (Connector Code ) | |
| EI-EUI-28 | UPC/DIN 47256 |
| EI-EUI-76 | UPC/HMS-10/AG |
| EI-EUI-89 | UPC/FC narrow key |
| EI-EUI-90 | UPC/ST |
| EI-EUI-91 | UPC/SC |
| EI-EUI-95 | UPC/E-2000 |
| Example | FVA-60B-D-EI-EUI-89 |
Resources
File resources
EXFO FVA-60B Specifications Sheet
