Configured models contain the following attributes:
Network & Fiber InstallationsOptical Time Domain Reflectometers1310/1550/1625nmPCModularPlease use 'Get Quick Quote' and we’ll contact you and quote for your exact need.
You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.
Attribute | Value |
---|---|
Wavelength | 1310/1550/1625nm |
Connector Type | PC |
Form Factor | Modular |

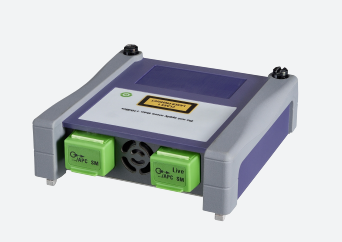

T-BERD/MTS 4100-Series MP2 OTDR Modules; For T-BERD/MTS-2000, -4000 V2, -5800 Platforms
The VIAVI MP2 OTDR modules provide the optimum performance that fiber installers and service providers need to install, turn-up and maintain optical network architecture, such as long-haul, metro, PON/FTTH, and wireless backhaul.
The OTDR module’s optical performance, combined with the complete suite of T-BERD/MTS platform testing features, ensures that comprehensive testing is done right the first time.
Key Features:
Benefits:
Specifications | |
4100-Series MP2 OTDR Modules | |
General (Typical at 25º C) | |
Weight | approx. 500 g (1.1 lbs) |
Dimensions (w x h x d) | 128 x 134 x 40 mm (5 x 5.28 x 1.58 in) |
Laser Safety Class (21 CFR) | Class 1/1M |
Distance Units | Kilometer, meter, feet and miles |
Group Index Range | 1.30000 to 1.70000 in 0.00001 steps |
Number of Data Points | up to 256,000 data points |
Specifications | |
4100-Series MP2 OTDR Modules | |
Distance Measurement (Typical at 25º C) | |
Mode | Automatic or dual cursor |
Display Range | From 0.1 up to 400 km |
Display Resolution | 1 cm |
Sampling Resolution | From 4 cm |
Cursor Resolution | From 1cm |
Accuracy | ±0.75 m ±sampling resolution ±1.10-5 * x Distance (excluding group index uncertainties) *Time base controller/clock accuracy |
Specifications | |
4100-Series MP2 OTDR Modules | |
Attenuation Measurement (Typical at 25º C) | |
Mode | Automatic, manual, 2-point, 5-point and LSA |
Display Range | 1.25 dB to 55 dB |
Display Resolution | 0.001 dB |
Cursor Resolution | From 0.001 dB |
Linearity | ±0.03 dB/dB |
Threshold | 0.01 to 5.99 dB in 0.01 dB step |
Specifications | |
4100-Series MP2 OTDR Modules | |
Reflectance/ORL Measurements (Typical at 25º C) | |
Mode | Automatic or manual |
Reflectance Accuracy | ±2 dB |
Display Resolution | 0.01 dB |
Threshold | –11 to –99 dB in 1 dB step |
Specifications | |
4100-Series MP2 OTDR Modules | |
4100MP2 OTDR Modules (Typical at 25º C) | |
Wavelength(1) | 1310+/-20nm; 1550+/-20nm; 1625+/-10nm; 1650+/-10nm |
Dynamic Range(2) | 46/45/44/42 dB |
Pulsewidth | 3 ns to 20 μs |
Event Dead Zone(3) | 0.65m |
Attenuation Dead Zone(4) | 2.5 m |
Splitter Attenuation Dead Zone(5) | <35 m after a 16 dB splitter loss |
Power Meter | Calibrated wavelengths: 1310, 1490, 1550, 1625, 1650 nm Power range: -3 to -55 dBm Accuracy: +/- 0.5 dB @ -30 dBm |
Continuous Wave Light Source | Wavelengths: same as OTDR Output power(6) : -3.5 dBm Stability: |
Notes:
(1) Laser at 25°C and measured at 10 μs
(2) The one way difference between the extrapolated backscattering level at the start of the fiber and the RMS (SNR=1) noise level, after 3 minutes averaging and using the largest pulse-width
(3) Measured at ±1.5 dB down from the peak of an unsaturated reflective event using the shortest pulse-width
(4) Measured at ±0.5 dB from the linear regression using a FC/UPC reflectance and using the shortest pulse-width
(5) Measured at 1550 nm using the 100 ns pulse-width
(6) Subtract 3dB when used in modulation mode (270/330/1k/2kHz)
Specifications | |
4100-Series MP2 OTDR Modules | |
Ordering Information | |
Part Number | Description |
4100MP2 Modules | |
E4126MP2-PC/-APC | 1310/1550 nm MP2 OTDR Module |
E4136MP2-PC/-APC | 1310/1550/1625 nm MP2 OTDR Module |
E4136FMP2-APC | 1310/1550 nm // Filtered 1625 nm MP2 OTDR Module |
E4138FMP265-APC | 1310/1550 nm // Filtered 1650 nm MP2 OTDR Module |
Options | |
E41OTDRPM | Power meter option through the OTDR port |
E41OTDRCR | Calibration report |
Software Licenses (n=2, 4 or 5 per the TB/MTS platforms chosen) | |
ESMARTACQ-nK | Smart Acquisition Software License providing multi-pulses OTDR acquisitions |
ESMARTLINK-nK | Software license providing optimized linear trace view of fiber under test |
ESMARTFTTH-nK | FTTH-SLM Software License providing optimized FTTH OTDR mode with SmartAcq capability and SLM icon based map view |
EPULSE3NS | 3ns pulse width option |
Universal Optical Connectors | |
EUSCADS, EUFCADS, EULCADS, EUSCADS-APC, EULCADS-APC | Connector adapters |
