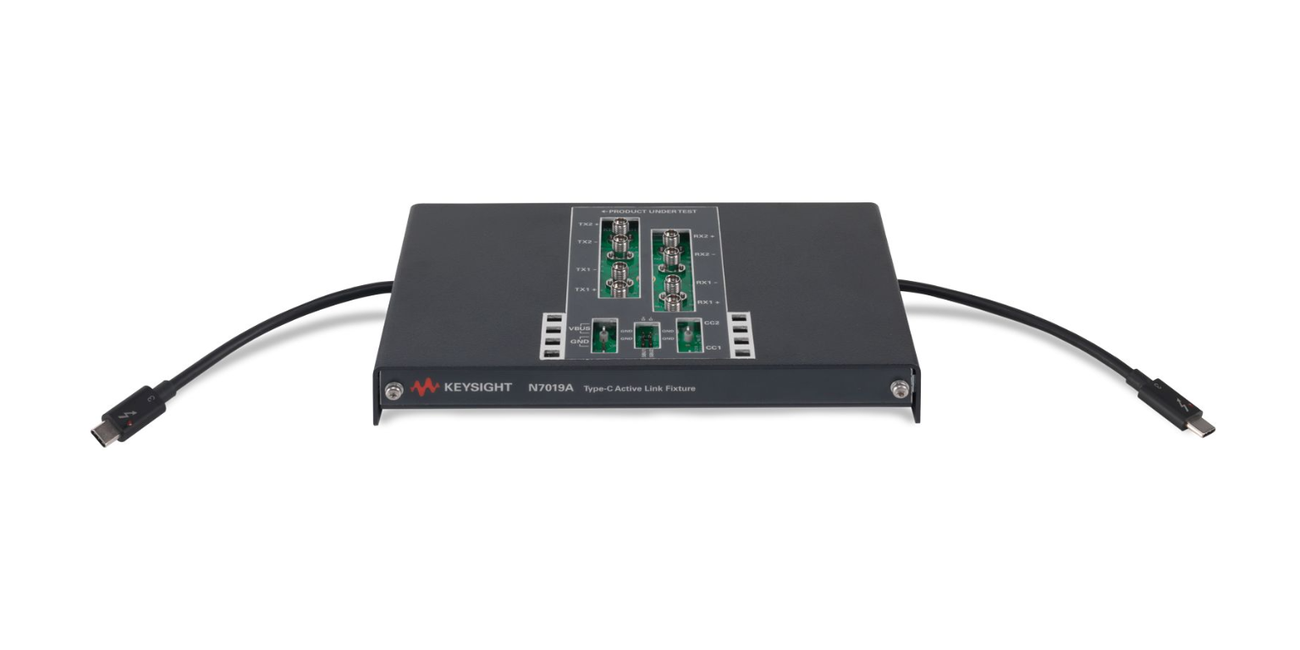

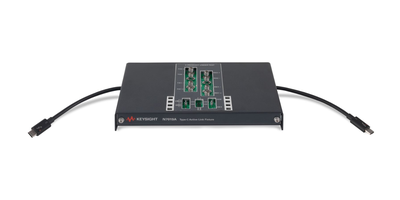

Keysight Technologies N7019A

Type-C Active Link Fixture

Model

N7019A

Manufacturer

Keysight Technologies

Configured models contain the following attributes:

Oscilloscope Probes

Configurations

Product Overview

Resources

Let us help you with your exact configuration

Please use 'Get Quick Quote' and we’ll contact you and quote for your exact need.

You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.

Product Overview

Use the N7019A to access all your Type-C signals in a live link. The acquired signals can be used for debug or decoded with USB-PD, USB 2.0, USB 3.2, or USB4 Protocol Decode Software.

The Keysight Technologies, Inc. N7019A Type-C Active Link fixture provides a fast and easy access to test, debug and decode your Type-C active link. Used in conjunction with the Keysight Protocol and Decode SW, you can now access, debug, and decode Vbus, USB-PD, USB 2.0, USB 3.2, and USB4 SB, USB4 10G, and USB4 20G, on an active link.

KEY FEATURES

Provides access to all Type-C signals during an active link

Signals include Vbus, USB 2.0, USB-PD, SBU1/2, and TX/RX up to maximum USB4 rate of 20 Gbps

Works in conjunction with Keysight Protocol Trigger Decode solutions for USB-PD, USB 2.0, USB 3.2, and USB4
