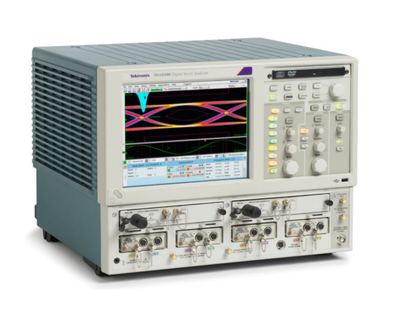

The DSA8300 is a state-of-the-art Equivalent Time Sampling Oscilloscope that provides the highest fidelity measurement and analysis capabilities for Communications Signal Analysis, Serial Data Network Analysis, and Serial Data Link Analysis applications.
| Key Features |
Low time base jitter:
425 fs typical on up to 8 simultaneously acquired channels
<100 fs on up to 6 channels with 82A04B phase reference module
|
| Industry’s highest vertical resolution – 16 bit A/D |
Electrical resolution:
<20 µV LSB (for 1 v full range)
|
| Optical resolution from <20 nW for the 80C07B (1 mW full range) to <0.6 µW for the 80C10C (30 mW full range) |
| Optical bandwidths to >80 GHz |
| Electrical bandwidths to >70 GHz |
| Over 120 automated measurements for NRZ, RZ, and pulse signal types |
| Automated mask testing with over 80 industry-standard masks |
| Complex jitter/noise/BER/SER analysis (80SJNB), support for complex measurements TDECQ¹ , SNDR² (applications) |
Notes:
¹ Transmitter and Dispersion Eye Closure Quaternary for PAM4.
² Signal-to-Noise-and-Distortion Ratio
| Specifications |
|
| DSA8300 Series |
|
| Model Overview |
|
| Model | Description |
| DSA8300 | Digital Serial Analyzer Sampling Oscilloscope |
| Optical Modules |
|
| 80C07B | 2.5 GHz single-mode and multi-mode,
Amplified (750 to 1650 nm) optical module for multirate datacom and telecom applications w/ optional integrated clock recovery
|
| 80C08D | 9 GHz optical channel; single-mode and multi-mode,
Amplified (750 to 1650 nm) optical module optimized for 8.5 to 12.5 Gb/s applications with optional integrated clock recovery
|
| 80C10C | 55/70/80 GHz;
Single-mode (1290 to 1330 nm and 1520 to 1620 nm) optical module with reference receiver* filters for multirate datacom and telecom 40 Gb/s and 100 Gb/s (4 × 25 Gb/s) and PAM4 50G/100G/200G/400G at 25+GBd and 53+GBd applications with optional calibrated trigger pick-off for use with external clock recovery instruments
(such as the CR286A)
|
| 80C11B | 30 GHz;
Single-mode (100 to 1650 nm) optical module with reference receiver* filters for 8.5 to 14.1 Gb/s telecom and datacom standards.
Optional, integrated clock recovery for 8.5 to 12.6 Gb/s applications
|
Note:
* Optical Reference Receiver (ORR) is a 4th-order Bessel-Thompson filter, with a nominal response and other details defined by standards. Details of the definition differ; Tektronix optimizes the response for best nominal fit and highest quality mask test results.
