Tektronix DPOFL-DDRA

Tektronix provides the most comprehensive solutions to serve the needs of the engineers designing DDR silicon for server, computer, graphics systems, mobile, and embedded systems, as well as those validating the physical layer compliance of DDR Memory Compliance Test Specification.

The Tektronix Option DDRA (DDR1/2/3/4, GDDR3/5, and LPDDR2/3) and LP4 (LPDDR4) includes compliance and debug solution for the following:

• DRAM components
• Data Buffer/RCD components
• System boards
• Embedded systems
• Automotive memory validation
• Graphics card memory validation

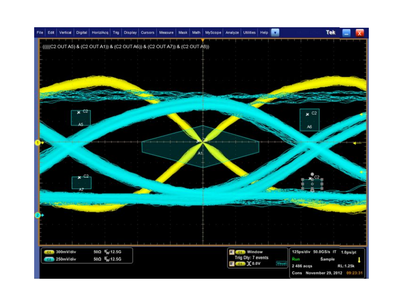

The Tektronix Option DDRA and LP4 applications includes the DDR compliance application and DDR compliance automation solution as well as the Tektronix DPOJET based DDR Jitter and Eye Diagram analysis tools for debug purposes in a single software package.

The Tektronix Option DDRA and Option LP4 applications are compatible with Tektronix DPO/MSO70000 series oscilloscopes that are designed to meet the challenges of the next generation memory standards. These oscilloscopes provide the industries leading vertical noise performance with the highest number of effective bits (ENOB) and flattest frequency response for oscilloscopes in their class.
