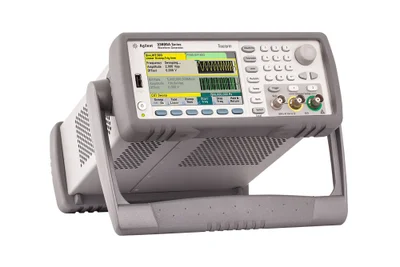

Keysight Technologies 336MEM1U

Configure Unit

Available to Buy Online

View Configurations

Memory Upgrade; 64M Memory Upgrade for 1-channel 33600A Series Waveform Generators

Model

336MEM1U

Manufacturer

Keysight Technologies

Configured models contain the following attributes:

Configurations

Key Specs

Product Overview

Resources

Let us help you with your exact configuration

Please use 'Get Quick Quote' or ‘Configure Unit’ and we’ll contact you and quote for your exact need.

Configure Unit

You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.

Product Overview

Extend your Trueform Waveform Generator Capabilities.

Grow the 33500B and 33600A Trueform Series Waveform Generators as your needs grow.

36MEM1U increases arb memory 64M samples for the 1-channel 80 & 120 MHz 33600A Series Trueform waveform generators for longer waveforms.

Key Features

High-bandwidth pulse, 100 MHz, DDS pulse limited to 50 MHz

Provides standard PRBS patterns, PN3 through PN32

2-Channel Coupling`

Combining Signals

Lower voltage range at 1 mVpp, DDS is only 10 mVpp

Adjust bandwidth to concentrate the energy of the noise

Specifications
Upgrades for 33600A Series Trueform Waveform Generator Models
Model	Description
336BW1U	Increases the bandwidth on 1-channel, from 80 MHz to 120 MHz
336BW2U	Increases the bandwidth on 2-channel, from 80 MHz to 120 MHz
336MEM1U	Adds 64 MSa of memory per channel to the 1-channel 80 and 120 MHz waveform generators. Requires arbitrary waveform capabilities.
336MEM2U	Adds 64 MSa of memory per channel to the 2-channel 80 and 120 MHz waveform generators. Requires arbitrary waveform capabilities.
336SECU	Enables NISPOM and file security to 1- and 2-channel waveform generators
33600U	Adds high-stability timebase to 1 and 2 channel waveform generators. Requires arbitrary waveform capabilities
3446GPBU	Adds user installable GPIB interface module upgrade to 1- and 2- channel waveform generators

Specifications
Upgrades for 33500B Series Trueform Waveform Generator Models
Model	Description
335BW1U	Increases the bandwidth on 1-channel, from 20 MHz to 30 MHz
335BW2U	Increases the bandwidth on 2-channel, from 20 MHz to 30 MHz
335ARB1U	Adds arbitrary waveform capabilities to 1-channel, 20 and 30 MHz waveform generators
335ARB2U	Adds arbitrary waveform capabilities to 2-channel, 20 and 30 MHz waveform generators
335MEM1U	Adds 16 MSa of memory per channel to the 1-channel 20 and 30 MHz waveform generators. Requires arbitrary waveform capabilities.
335MEM2U	Adds 16 MSa of memory per channel to the 2-channel 20 and 30 MHz waveform generators. Requires arbitrary waveform capabilities.
335SECU	Enables NISPOM and file security to 1- and 2-channel waveform generators
33500U-OCX	Adds high-stability timebase to 1 and 2 channel waveform generators with arbitrary waveform capabilities. Must return unit to Keysight
