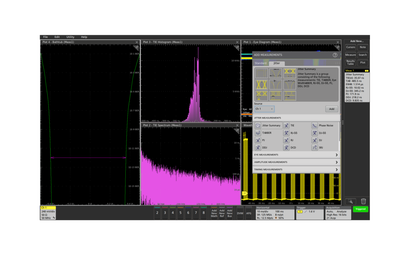

Based on the industry-standard Tektronix DPOJET eye-diagram, jitter, noise, and timing analysis package, the Advanced Jitter and Eye Diagram Analysis option provides the highest sensitivity and accuracy available in real-time instruments. Unlike competitive jitter analysis applications, this application integrates the comprehensive jitter and eye-diagram analysis into the oscilloscope's automatic measurement system user interface.
The automatic measurements, measurement plots, and advanced jitter decomposition algorithms simplify discovering signal integrity concerns and jitter and their related sources in today's high-speed serial, digital, and communication system designs.
| Key Features |
| Basic timing parametric measurements such as period, frequency, rise/fall times, pulse width, and duty cycle |
| Time Interval Error (TIE) |
| Phase Noise |
| Many graphical tools such as Histograms, Time Trends, and Spectrums |
| Programmable software clock recovery including software PLL1 |
| Selectable high- and low-limit measurement bounds |
| Key Optional Jitter Analysis Features |
| Jitter and Timing Analysis for analog and digital clock and data signals |
| Real-time Eye-diagram (RT-Eye®) Analysis2 |
| Automatic bit rate and pattern length detection eases measurement configuration |
| Selectable high- and low-pass measurement filters |
| Multiple plot types to view and analyze jitter: Time Trend, Eye Diagram, Histogram, Spectrum, Bathtub Curve, and SSC Profile |
| Accurate jitter analysis using the spectral and Q-scale methods for detailed decomposition of jitter components, including the extraction of industry-standard dual-Dirac model parameters |
| Jitter separation algorithms accurately measure the effects of bounded uncorrelated jitter (BUJ) which enables precise TJ measurements |
| Eye diagram mask testing |
| Specifications |
|
|
|
|
| Upgrade to Existing Instrument |
|
|
|
|
| Ordering Information |
|
|
|
|
| 5 Series MSO Node-Locked license | 5 Series MSO Floating license | 6 Series and 6 Series B MSO Node-Locked license | 6 Series and 6 Series B MSO Floating license | Description |
| SUP5-DJA | SUP5-DJA-FL | SUP6-DJA | SUP6-DJA-FL | Advanced Jitter Analysis application license to upgrade an existing instrument |
Note:
Option software is part of the instrument firmware. Always download and install the latest version of the firmware. User documentation for options is part of the oscilloscope documentation.
| Specifications |
|
| New Instrument Option |
|
| Ordering Information |
|
| Model | Description |
| Opt. 5-DJA | Advanced Jitter Analysis application preinstalled on a new 5 Series MSO instrument. |
| Opt. 6-DJA | Advanced Jitter Analysis application preinstalled on a new 6 Series MSO and 6 Series B MSO instruments. |
| Specifications |
|
| 100BASE-T1 Ordering Information |
|
| Required Hardware | 5 Series MSO oscilloscope (2 GHz Option 5-BW-2000) or 6 Series B MSO oscilloscope with minimum bandwidth of 2 GHz (Option 6-BW-2500, 6-BW-4000, 6-BW-6000, 6-BW-8000, 6-BW-10000) for 1000BASE-T1
5 Series MSO oscilloscope (1 GHz Option 5-BW-1000, 5-BW-2000 or 6 Series B MSO oscilloscope with minimum bandwidth of 1 GHz (Option 6-BW-1000, 6-BW-2500, 6-BW-4000, 6-BW-6000, 6-BW-8000, 6-BW-10000) for 100BASE-T1
Option 5-WIN, Opt. 6-WIN or SUP5-WIN, SUP6-WIN (removable SSD with Microsoft Windows 10 operating system)
|
| Required Software | Perpetual License:
Option 5-AUTOEN-SS or 6-AUTOEN-SS (Automotive Ethernet Signal Separation)
Option 5-PAM3 or 6-PAM3 (PAM3 Analysis)
Option 5-DJA or 6-DJA (Advanced Jitter and Eye Analysis)
Option 5-SRAUTOEN1 or 6-SRAUTOEN1 (100BASE-T1 Protocol Decode)
|
| Recommended Options | Option 5-CMAUTOEN or 6-CMAUTOEN (TekExpress 100BASE-T1/1000BASE-T1 Automotive Ethernet Compliance)
Option 5-AUTO-BND or 6-AUTO-BND (Automotive Ethernet Compliance, Signal Separation, PAM3 Analysis (requires Option 5-DJA), 100BASE-T1 Serial Decode (bundle option))
Option 5-RL-125M or SUP5-RL-125M (adds 125 M record length)
Option 5-SRAUTO or 6-SRAUTO, SUP5-SRAUTO or SUP6-SRAUTO (adds CAN, CAN FD, LIN, FlexRay Serial Bus Trigger and Decode)
Option 5-SREMBD or 6-SREMBD, SUP5-SREMBD or SUP6-SREMBD (adds I2C, SPI Serial Bus Trigger and Decode)
|
| Probing | TDP1500 or TDP3500 differential probe(s), TCP0030A (100BASE-T1) or P6022 (100BASE-T1) or CT6 (100/1000BASE-T1) current probe(s) |
