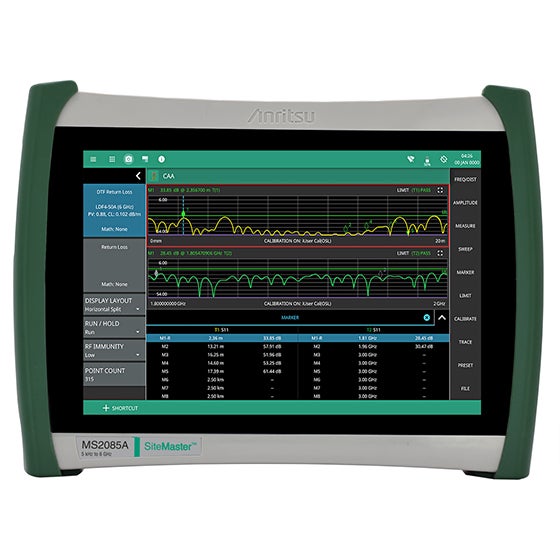

Anritsu MS2085A

The MS2085A Site Master is a 5 kHz to 4 or 6 GHz cable antenna analyzer that weighs less than 7 lbs. with an IK08 10-inch touch screen.

Key Features:

• Reflection Measurements: Return Loss, Cable Loss, VSWR, Smith Chart, 1-Port Phase, TDR (Ohm/Linear), DTF Return Loss, DTF VSWR
• Transmission Measurements: Transmission (USB Sensor), 2-Port Transmission
• Calibration Methods: OSL, OSL +Trans (USB Sen), OSL + Trans (2-Port), Trans (USB Sen), Trans (2-Port), iOSL, iOSL+Trans (USB Sen), iOSL+Trans (2-Port)
• Calibration Type: Factory default 1-Port ReadyCal, OSL, InstaCal™ and FlexCal™
• Display: Single or Horizontal Split Measurement Touchscreen
• Sweep Speed: 350 µsa/data point, fast sweep rate, typ. Data Points: 10,049
• Certified Line Sweeping Training
• Built-in PDF/HTML Report Generator
• Battery Life: Up to 9 hours1
• Anritsu Remote and Report Tools (ARRT)
