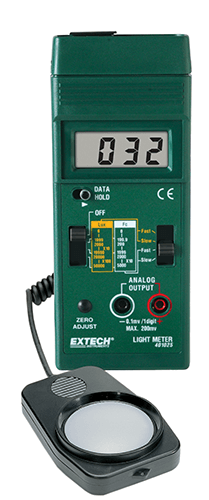

Extech 401025

Foot Candle/Lux Light Meter

型号

401025

产品类别

Electrical & Power Quality

制造商

Extech

配置型号包含以下特性:

Electrical & Power QualityOther Industrial / Electrical Testing

配置

产品总览

资源

让我们为您提供准确的配置

请使用“获取快速报价”，我们将根据您的需求与您联系并报价。

您也可以选择保持联系，我们会为您提供正确的应用和采购解决方案。

产品总览

401025 is a Foot Candle/Lux Meter which measures light level to 5000FC (foot-candles) and 50,000 Lux with a 5% accuracy using a precision photo diode and color correction filter. Meter features fast/slow response time and an analog output (1mV per count) for capturing readings to a recorder. Comes complete with 9-Volt battery.

Key Features

Accurately displays light level in terms of Fc or Lux over three ranges:

Fc (0-200, 0-2000 and 0-5000Fc)

Lux (0-2000, 0-20000, 0-50000Lux)

Resolution of 0.1Fc or 1Lux with 5% accuracy

Select fast (0.2 second) or slow (0.4 seconds) response

Monitor light levels using outputs; 1mV per count analog output for capturing readings to a recorder

Utilizes precision photo diode and color correction filter; Cosine/color corrected

Complete with 9V battery and light sensor with 45" (1.1m) cable and protective cover

Specifications
401025 Foot Candle/Lux Light Meter
Features	Parameters
Fc Range	200 2000 5000Fc
Lux Range	2000 20000 50000Lux
Max. Resolution	0.1Fc/1Lux
Basic Accuracy	±5% FS
Fast Response	0.2s
Slow Response	0.4s
Cosine & Colour Corrected	Yes
Analog Output	Yes
Dimensions	6.4x2.8x1.2" (163x70x30mm)/
Weight	8.3oz (220g)

Specifications
401025 Foot Candle/Lux Light Mete
Model Overview
Model	Description
401025	Foot Candle/Lux Meter
401025-NIST	Foot Candle/Lux Meter, with NIST Certificate
Accessories
409996	Vinyl Pouch Carrying Case
