快速报价: High Voltage PFT-503CM

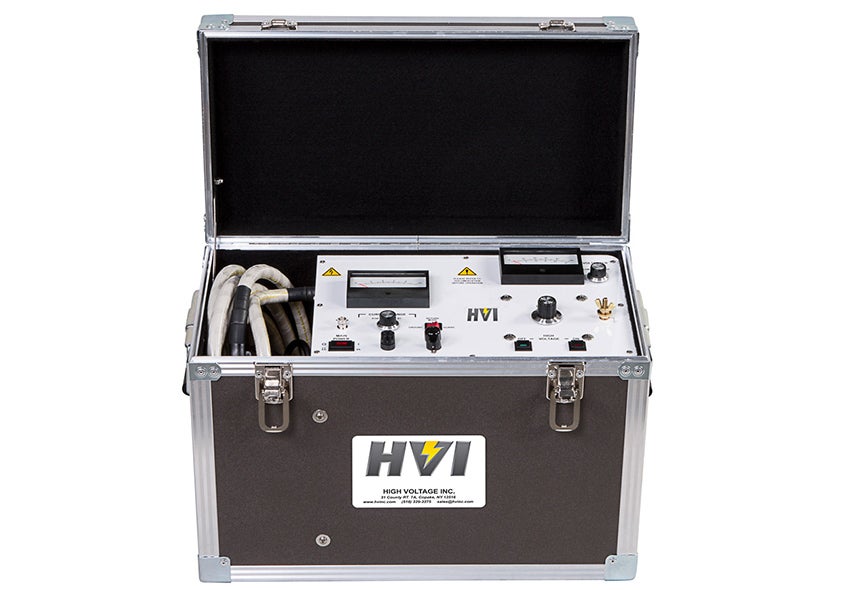

High Voltage PFT-503CM
AC High Voltage Dielectric Test Set; Portable, Hipot, 0 – 50 kV AC @ up to 3 kVA
型号
PFT-503CM产品类别
Electrical Power Test制造商
High Voltage配置型号包含以下特性:
Electrical Power TestHipot Testing配置
产品总览
资源
让我们为您提供准确的配置
产品总览
The PFT-503CM and PFT-503CMF are from our popular PFT Series of field portable AC hipot test sets. These hipots provide continuously adjustable AC voltage used for a pass/fail, AC over-voltage withstand test on high voltage apparatus, like switchgear, circuit breakers, reclosers, vacuum bottles, hot sticks, bus duct, and any other apparatus needing an AC test voltage.
The PFT Series offers the most field portable, affordable, and easiest to operate AC hipots at this voltage and power. A gapped core transformer for up to 3 kVA of output power with the draw of only 1.5 kVA so the hipot can be powered by a standard 120Vac or 230Vac input. Equipped with a two-range voltmeter, three-range current meter and guard circuit for precise leakage current measurements.
| Key Features |
| Convenient one-piece field portable design |
| Secondary connected 2 Range Voltmeter: 0 – 25 / 50 kV AC |
| 3 Range Current Meter: 0 – 1 mA AC with x1, x10, and x100 multipliers |
| Fixed overload set to 120% of variable transformer rated output current |
| Transit protected meters prevent meter damage between test sites |
| Guard/Ground circuit for accurate leakage current measurement |
| 20 ft shielded output and return cables |
| Gapped core transformer design for capacitive load compensation |
| Zero Start and External safety Interlock provisions |
| Specifications | |
PFT SERIES Versatile AC Hipots for Apparatus Testing | |
| Features | Parameters |
| Model | PFT-503CM / PFT-503CMF |
| Input: | PFT-503CM: 120 V, 60 Hz, 15 A PFT-503CMF: 230 V, 50/60 Hz, 8 A |
| Output: | 0-50 kV AC, 1 kVA resistive load 3 kVA capacitive load, up to 60 mA current Output current is reduced at lower voltages |
| Duty: | 3 kVA: ½ hour ON, 2 hours OFF 2 kVA: 1 hour ON, 1 hour OFF 1 kVA: continuous |
| Voltmeter: | 3.5”, scaled 0-25/50 kV AC, ±2% F.S. |
| Current Meter: | 3.5”, scaled 0-1 mA, ±2% F.S. with range multipliers of x1, x10, x100 |
| Distortion: | Less than 5% |
Size & Weight: (W x D x H) | 21 x 11.25 x 15.25 in., 75 lb. 534 x 286 x 387 mm, 34 kg |
| Output Termination | 20 ft. (6 m) shielded output cable with alligator clamp |
| Scope of Supply | 20ft black ground lead 20ft shielded return cable External interlock plug Operations manual Calibration certificate |
| Specifications | ||
PFT SERIES Versatile AC Hipots for Apparatus Testing | ||
| Model Overview | ||
| Model | Frequency | Input |
| PFT-103CM | 0 – 10 kV AC @ up to 3 kVA | 120 V, 60 Hz, 15 A |
| PFT-103CMF | 0 – 10 kV AC @ up to 3 kVA | 230 V, 50/60 z, 8 A |
| PFT-301CM | 0 – 30 kV AC @ 1 kVA | 120 V, 60 Hz, 10 A |
| PFT-301CMF | 0 – 30 kV AC @ 1 kVA | 230 V, 50/60 Hz, 5 A |
| PFT-302CE | 0 – 30 kV AC @ 2 kVA | 230Vac, 50/60Hz, 15A |
| PFT-303CM | 0 – 30 kV @ up to 3 kVA | 120 V, 60 Hz, 15 A |
| PFT-303CMF | 0 – 30 kV @ up to 3 kVA | 230 V, 50/60 Hz, 8 A |
| PFT-401CEF | 0-40 kV AC @ 1 kVA | 230Vac, 50/60Hz, 6A |
| PFT-503CM | 0 – 50 kV AC @ up to 3 kVA | 120 V, 60 Hz, 15 A |
| PFT-503CMF | 0 – 50 kV AC @ up to 3 kVA | 230 V, 50/60 Hz, 8 A |
| PFT-652CM | 0 – 65 kV AC @ 2 kVA | 120 V, 60 Hz, 15 A |
| PFT-652CMF | 0 – 65 kV AC @ 2 kVA | 230 V, 50/60 Hz, 8 A |
| PFT-1003CM | 0 – 100 kV @ up to 3 kVA | 120 V, 60 Hz, 15 A |
| PFT-1003CMF | 0 – 100 kV @ up to 3 kVA | 230 V, 50/60 Hz, 8 A |
