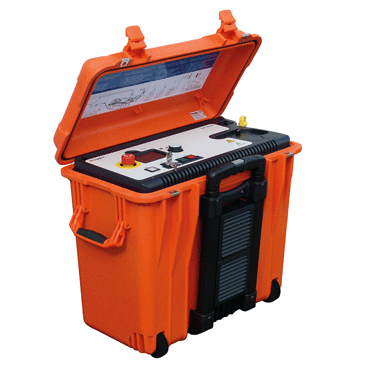

The VLF sine wave 34 kV is a compact, robust and portable VLF sine wave test system for medium voltage cables.
The design, optimized for rapid transportation and quick setup, and the continuous duty cycle are two attributes that qualify the system
as an ideal tool for routine cable testing. For both 0.1 Hz sine wave voltage tests and rectangular or DC voltage tests, the VLF sine wave 34 kV fills the highest demands on the test voltage quality and stability. Moreover, the integrated “breakdown detection“ shuts down the test voltage in the event of an excessive charge current and guarantees limited damage to the cable.
Consistent single-button operation combined with a sophisticated operating concept allows a fast and targeted use of the system.
| Key Features |
| High test capacity of 5 µF |
| Suitable for outdoor use (IP 54) |
| Single-button operation |
| Integrated safety system |
| Reporting |
| Continuous duty cycle |
| Specifications |
|
| VLF Sine Wave 34 kV |
|
| Model Overview |
|
| Model / Order Number | Description |
| VLF34 / 890026134 | VLF Sine Wave 34kV Test System |
| Mandatory Selection Lead Set (1x) |
|
| 890020757 | Lead Set: Standard |
| 2008779 | Lead Set: NAFTA |
| Mandatory Selection Mains Cable (1x) |
|
| 810000024 | Mains Cable EU |
| 118307335 | Mains Cable UK |
| 502025220 | Mains Cable US |
| 90020435 | Mains Cable AUS |
| Options |
|
| 128309600 | External safety unit for stand-alone systems |
| 2009692 | HV connection cable VLF sine wave 34, 10m |
| 118303277 | HV connection cable VLF sine wave 34, 15m |
| 2008781 | HV connection cable VLF sine wave 34, 10m (NAFTA) |
| 2008782 | HV connection cable VLF sine wave 34, 15m (NAFTA) |
| 128309611 | Backfeed protection |
| 200 4131 | Calibration certificate VLF Sinus 34 kV |
