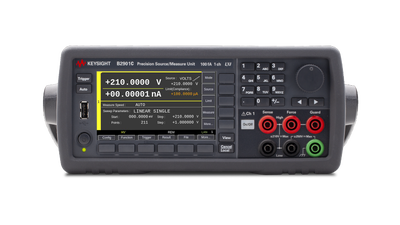

Keysight Technologies B2901C

SM2-Class Benchtop Source Measure Unit: 210 V, 100 fA, Single-Channel, 100 fA Resolution, Pulse

型号

B2901C

产品类别

LCR / Impedance Analyzers

制造商

Keysight Technologies

配置型号包含以下特性:

LCR / Impedance AnalyzersSemiconductor Test Equipment

配置

技术指标

产品总览

资源

让我们为您提供准确的配置

请使用“获取快速报价”，我们将根据您的需求与您联系并报价。

您也可以选择保持联系，我们会为您提供正确的应用和采购解决方案。

产品总览

The B2901C Precision Source / Measure Unit (SMU) is a 1-channel, compact, cost-effective bench-top SMU that can source and measure voltage and current.

The Keysight B2901C precision source/measure unit (SMU) is a compact, cost-effective 1-channel SMU that accurately sources and measures voltage and current. It offers user-friendly I/V measurements without needing multiple instruments with its 4-quadrant capabilities. The B2901C features a 4.3-inch color display for graphical or numerical measurements and includes PC control software for remote operation at no extra cost. It also supports SCPI commands for seamless integration with conventional SMU setups, ensuring high throughput for efficient testing.

KEY FEATURES

Source with a minimum resolution of 1 pA / 1 μV.

Measure with a minimum resolution of 100 fA / 100 nV.

Output up to 210 V and 3 A DC / 10.5 A pulse.

Generate arbitrary waveforms and digitize at intervals as short as 20 μs.

SPECIFICATIONS
Model: B2901C
Feature	Parameter
Maximum Sample Rate	50 kSa/s
Minimum Current Measurement Resolution	100 fA
Maximum Current per Output	3.0 A DC / 10.5 A pulse
Maximum Voltage per Output	210 V
Source Resolution	5.5 digits
Minimum Sampling Interval	20 µs
Number of Channels	1
Pulse Output	Yes

SPECIFICATIONS
B29xxC Series Overview
Model	Description
B2901CL	Precision Source/Measure Unit, 1 ch, 1 pA Resolution, 21 V, 1.5 A
B2910CL	Precision Source/Measure Unit, 1 ch, 10 fA resolution, 210 V, 1.5 A
B2901C	Precision Source/Measure Unit, 1 ch, 100 fA, 210 V, 3 A DC/10.5 A pulse
B2902C	Precision Source/Measure Unit, 2 ch, 100 fA, 210 V, 3 A DC/10.5 A pulse
B2911C	Precision Source/Measure Unit, 1 ch, 10 fA, 210 V, 3 A DC/10.5 A pulse
B2912C	Precision Source/Measure Unit, 2 ch, 10 fA, 210 V, 3 A DC/10.5 A pulse
OPTIONS
1A7	Calibration + Uncertainties + Guardbanding (not accredited)
A6J	ANSI Z540-1-1994 calibration
UK6	Commercial calibration certificate with test data

SPECIFICATIONS
B29xxC Series Accessories Overview
Model	Description
N1297A	Banana - Triax adapter for 2-wire (non-Kelvin) connection
N1297B	Banana - Triax adapter for 4-wire (Kelvin) connection
N1294A-011	Interlock cable for 16442B (1.5 m)
N1294A-012	Interlock cable for 16442B (3.0 m)
N1294A-031	GPIO-BNC trigger adapter
N1294A-032	Digital I/O trigger cable for multiple unit control
16494A-001	Low leakage triax cable (1.5 m)
16494A-002	Low leakage triax cable (3.0 m)
16494A-005	Low leakage triax cable (4.0 m)
1CM124A	Rack mount flange kit
