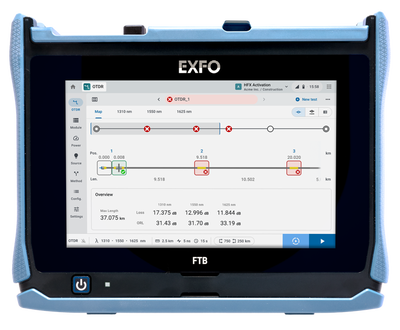

EXFO FTB-LITE-730D-SM3

FTTx/PON SM OTDR 1310/1550/1625 nm, 42/40/40 dB (9/125 µm)

型号

FTB-LITE-730D-SM3

产品类别

Network & Fiber Installations

制造商

EXFO

配置型号包含以下特性:

Network & Fiber InstallationsOptical Time Domain Reflectometers

配置

产品总览

资源

让我们为您提供准确的配置

请使用“获取快速报价”，我们将根据您的需求与您联系并报价。

您也可以选择保持联系，我们会为您提供正确的应用和采购解决方案。

产品总览

Optimized for FTTx/MDU fiber rollouts and troubleshooting. Can also test metro networks.

EXFO’s FTB Lite 700 Series features always-on mobile connectivity, designed to solve issues, such as lack of compliance and expertise, inefficient processes, and delays in getting the latest updates.

The FTB Lite 700 Series has direct access to EXFO Exchange workspaces at all times. Onboarding has never been easier with pre‑configured access and the capability to sign into EXFO Exchange directly from the platform, meaning no more phone pairing.

KEY FEATURES

8-inch (203-mm) color touchscreen for use in bright sunlight or any other environment

Live and dark fiber characterization, troubleshooting and activation through the same OTDR port

Dynamic range up to 42 dB for up to 132 km point-to-point (P2P) or 1×128 PON

Event dead zone (EDZ) / Attenuation dead zone (ADZ): 0.7/2.5 m in SM and MM, PON dead zone 35 m in SM

FTTx in-service testing at 1650 nm with optional in-line GPON/XGS-PON power meter

SPECIFICATIONS
Model: FTB Lite 730D
Feature	Parameter
Calibrated Wavelengths	850 / 1300 / 1310 / 1342 / 1358 / 1490 / 1550 / 1577 / 1625 / 1650
Dynamic Range (dB)	42 dB
EXFO Exchange Compatibility	Yes
iOLM-ready	Yes
Product Type	Handheld

SPECIFICATIONS
Model: FTB-Lite-730D Overview
Feature	Description
FTB-Lite-730D-XX	Optical Configuration
SM1	SM OTDR, 1310/1550 nm
SM3	SM OTDR, 1310/1550/1625 nm
SM7	SM OTDR, 1650 nm live
SM8	SM OTDR, 1310/1550 nm and 1650 nm filtered, on the same port
FTB-Lite-730D-XX-XX	Base Software
OTDR	Enables OTDR application only
OIX	Enables OTDR and standard iOLM features
FTB-Lite-730D-XX-XX-XX	SM and MM Connector ^a
EA-EUI-28	APC/DIN 47256
EA-EUI-89	APC/FC narrow key
EA-EUI-91	APC/SC
EA-EUI-95	APC/E-2000
EA-EUI-98	APC/LC
FTB-Lite-730D-XX-XX-XX-XX	OPM Option
00	Without OPM2 option
OPM2	In-line PON power meter mode (dual band) ^b
FTB-Lite-730D-XX-XX-XX-XX-XX	Connectivity
FRF	With full RF capability (LTE, GNSS, Wi-Fi and Bluetooth)^{f, g}
FTB-Lite-730D-XX-XX-XX-XX-XX-XX	Power Meter
00	Without power meter or VFL
VFL	Visual fault locator
VFLHP	High power VFL
VPM2X	VFL and power meter; GeX detector
VPM2XHP	High-power VFL and power meter; GeX detector
FTB-Lite-730D-XX-XX-XX-XX-XX-XX-XX	Power Meter Connector Adapter ^e
FOA-22	FC: FC/PC, FC/SPC, FC/UPC, FC/APC
FOA-32	ST: ST/PC, ST/SPC, ST/UPC
FOA-54B	SC: SC/PC, SC/SPC, SC/UPC, SC/APC
FOA-96B	E-2000/APC
FOA-98	LC
FOA-99	MU
FTB-Lite-730D-XX-XX-XX-XX-XX-XX-XX-XX	Inspection Scope Models
00	Without inspection scope
FIP435B	Wireless analysis digital video inspection scope ^d Automated focus Automated pass/fail analysis Triple magnification Autocentering
FTB-Lite-730D-XX-XX-XX-XX-XX-XX-XX-XX-XX	Inspection Scope Base Tips ^c
APC	Includes FIPT-400-U25MA and FIPT-400-SC-APC
UPC	Includes FIPT-400-U25M and FIPT-400-FC-SC

NOTE:

^a. MM connectors available in EI (UPC) only.

^b. Available with SM7 and SM8 models.

^c. Available if inspection scope is selected.

^d. For use with separate mobile smart device running ConnectorMax2 software.

^e. Only available if power meter option is selected. Additional connector adapters available, contact EXFO.

^f. FRF option is mandatory.

^g. Not available in India and China.

EI CONNECTORS

To maximize the performance of your OTDR, EXFO recommends using APC connectors on SM port. These connectors generate lower reflectance, which is a critical parameter that affects performance, particularly in dead zones. APC connectors provide better performance than UPC connectors, thereby improving testing efficiency.
