Viavi ORL-55 (2287/24)

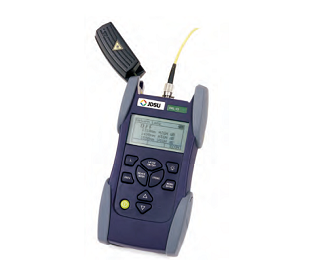

SmartClass ORL-55 Optical Return Loss Meter: 1310/1490/1625 nm, APC

型号

ORL-55 (2287/24)

产品类别

Network & Fiber Installations

制造商

Viavi

配置型号包含以下特性:

Network & Fiber InstallationsReturn / Loss Test Sets

配置

产品总览

资源

让我们为您提供准确的配置

请使用“获取快速报价”，我们将根据您的需求与您联系并报价。

您也可以选择保持联系，我们会为您提供正确的应用和采购解决方案。

产品总览

The ORL-55 is a high performance instrument for field, production and lab use. This instrument can be used in three different modes as a return loss meter, optical power/loss meter and a laser source.

KEY FEATURES

Auto-lambda function provides automatic wavelength detection to speed up testing.

70% reduction in testing time due to multiple automatic functions.

Industries first auto-zeroing function for very high accuracy with no manual zeroing needed.

SMARTEnergy power supply management system.

SMARTStar graphical user interface for fast and easy operation.

Quick start function requiring no warm up reduces testing time.

Robust shock proof instrument with great look and feel.

BENEFITS

Ensures quick and reliable testing of the return loss of an optical system. High return loss values are essential for ensuring the signal quality especially with CATV & FTTx networks.

Measures return loss at up to three wavelengths simultaneously in real time using digital signal processing.

Return loss referencing performed via a single key stroke. Very easy referencing due to ultra stable lasers and special signal processing.

Can be used as a standalone optical return loss meter, an optical power/loss meter and a laser source.

USB interface for easy remote control & report generation

Internal memory for over 1000 results

New Visual Fault Locator Option

New Host USB data storage option

APPLICATIONS

Designed for fiber optic field use for technicians and Installers/maintenance people within fiber optic networks especially for FTTX, CATV and high bandwidth installations.

SPECIFICATIONS
Model: ORL-55 Optical Return Loss Meter Overview
Model / Order Number	Description
2287/21	SmartClass ORL-55 Optical Return Loss Meter: 1310/1550 nm
2287/22	SmartClass ORL-55 Optical Return Loss Meter: 1310/1490/1550 nm
2287/23	SmartClass ORL-55 Optical Return Loss Meter: 1310/1550/1625 nm
2287/24	SmartClass ORL-55 Optical Return Loss Meter: 1310/1490/1625 nm
OPTION
2252/90.10	Visual fault locator
2277/90.06	USB Data Storage (memory stick not in scope of delivery)
ACCESSORIES
2150/00.xx	Optical Adapter DIN, FC, SC, ST, LC types
2229/90.21	OCK-10 Optical Connector Cleaning Kit
