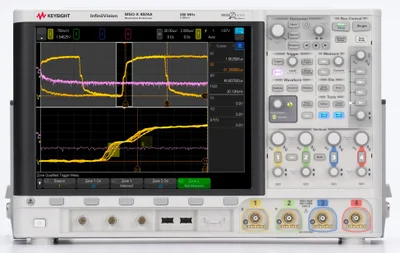

The Keysight 4000 X-Series oscilloscopes are engineered for next-generation performance, delivering waveform update rates 20 times faster than the competition to display the most signal detail. An industry-leading 12.1-inch capacitive touch screen with innovative hardware-based zone touch triggering provides the most intuitive interface to get you answers faster. The 4000 X-Series provides maximum investment protection with fully upgradable 7-instruments-in-1.
| KEY FEATURES |
| 200 MHz |
| 4 analog plus 16 digital channels |
| Easily view signals on the large 12.1-inch capacitive touch screen |
| Isolate signals in seconds with exclusive Zone touch triggering |
| Capture more data with 4 Mpts memory and standard segmented memory |
| See more signal detail with 1,000,000 wfms/s update rate |
| Expand your measurement capabilities with full upgradability: add bandwidth, dual-channel 20 MHz arbitrary waveform generator, 3-digit DVM, serial trigger and analysis, and mask testing at any time |
| SPECIFICATIONS |
|
|
|
|
|
|
|
|
| 4000 X-Series Overview |
|
|
|
|
|
|
|
|
| Model | 4022A | 4024A | 4032A | 4034A | 4052A | 4054A | 4104A | 4154A |
| Bandwidth* (–3 dB) | 200 MHz | 200 MHz | 350 MHz | 350 MHz | 500 MHz | 500 MHz | 1 GHz | 1.5 GHz |
| Calculated Rise Time (10 to 90%) | ≤ 1.75 ns | ≤ 1.75 ns | ≤ 1 ns | ≤ 1 ns | ≤ 700 ps | ≤ 700 ps | ≤ 450 ps | ≤ 300 ps |
| INPUT CHANNELS |
|
|
|
|
|
|
|
|
| DSOX | 2 | 4 | 2 | 4 | 2 | 4 | 4 | 4 |
| MSOX | 2 + 16 | 4 + 16 | 2 + 16 | 4 + 16 | 4 + 16 | 4 + 16 | 4 + 16 | 4 + 16 |
* 1.5 GHz real time bandwidth in half-channel mode or full channel equivalent time mode
| SPECIFICATIONS |
|
| InfiniiVision 4000 X-Series Oscilloscope Overview |
|
| Model | Bandwidth |
| MSOX4022A | 200 MHz |
| MSOX4024A | 200 MHz |
| MSOX4032A | 350 MHz |
| MSOX4034A | 350 MHz |
| MSOX4052A | 500 MHz |
| MSOX4054A | 500 MHz |
| MSOX4104A | 1 GHz |
| MSOX4154A | 1.5 GHz |
