Keysight Technologies N7623B

Keysight Technologies, Inc. Signal Studio software is a flexible suite of signal-creation tools that will reduce the time you spend on signal simulation.

For digital video standards including DVB-T/H, DVB-T2, DVB-C/S/S2, ISDB-T/TB/TSB/TMM, ATSC, ATSC-M/H, DTMB (CTTB), CMMB, J.83 Annex A/B/C, and DOCSIS 1.x/2.0/3.0/3.1, Signal Studio’s performance-optimized reference signals —validated by Keysight— enhance the characterization and verification of your devices.

Through its application-specific user-interface you’ll create standards-based and custom test signals for component, transmitter, and receiver test.

Signal Studio’s advanced capabilities use waveform playback mode to create and customize waveform files needed to test components and transmitters.

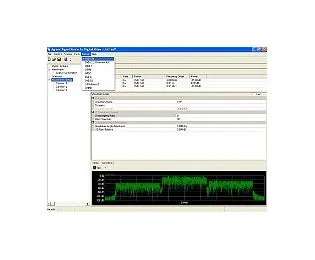

Its user-friendly interface lets you configure signal parameters, calculate the resulting waveforms and download files for playback.

The applications for these coded, statistically correct signals include:

– Parametric test of components, such as amplifiers, filters, gap-filler and repeater

– Performance characterization and verification of RF sub-systems

Signal Studio’s advanced capabilities enable you to create fully channel-coded signals for receiver bit-error-rate (BER), frame error rate (FER), packet-error-rate (PER), or subjective failure point (SFP) analysis.

Applications include:

– Performance verification and conformance test of receivers, during RF/baseband integration and system verification

– Coding verification of baseband subsystems, including FPGAs, ASICs, and DSPs

– Receiver chipset design and verification, performance test (IC design house or certification lab)

– Receiver module integration and verification (terminal vendors)

– Receiver manufacturing for phones (smart phones) or set top boxes

Once you have set up your signals in Signal Studio, you can download them to a variety of Keysight instruments and software platforms.

Signal Studio software complements these platforms by providing a cost-effective way to tailor them to your test needs in design, development and production test.

– Vector signal generators

– X-Series: MXG and EXG

– PSG

– ESG

– First-generation MXG

– M9381A PXIe VSG

– E6607A wireless test set

– PXB baseband generator and channel emulator

– M819xA arbitrary waveform generator

– SystemVue simulation software

– Waveform Creator software

N7623B

Signal Studio for Digital Video
