Description

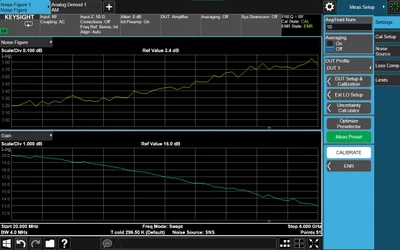

The Keysight N9069C noise figure measurement application provides noise figure and gain measurements with multi-touch screen operation for the Keysight N9040B UXA Signal Analyser. Transforming the UXA signal analyser into noise figure analyser, the application provides one-button noise figure and gain measurements to help you design, evaluate, and manufacture your devices or receiving systems.
Specifications
- One-button noise figure and gain measurements on amplifiers, converters (including multi-stage converters) and receivers up to 26.5 GHz
- Measurements include noise figure, gain, Y-factor, effective temperature, and hot/cold power density
- Instrument noise figure: 12.25 dB at 1 GHz, 5.45 dB at 1 GHz with U7227A USB preamp
- Extend noise figure measurements up to 110 GHz with Keysight K-series block down converters (N8975AZ)
