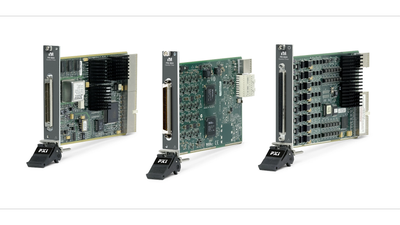

PXIe, 5 V, 8-Channel PXI Counter/Timer Module.
The PXIe-6612 performs encoder position measurement, event counting, period measurement, pulse-width measurement, pulse generation, pulse-train generation, and frequency measurement. It features eight counter/timers, digital debouncing filters, and TTL/CMOS-compatible digital I/O. The PXIe-6612 can perform three simultaneous high-speed DMA transfers.
| SPECIFICATIONS |
|
| Model: PXIe-6612 |
|
| Feature | Parameter |
| Bus Connector | PXI Express |
| Onboard High-Precision Oscillator | No |
| Digital I/O Isolation | - |
| Number of Counters/Timers | 8 |
| Company | NI |
| Measure Frequency | 80 MHz |
