Rohde & Schwarz RT-ZHD16 (1800.2207.02)

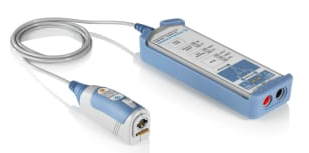

High Voltage Probe; RT-ZHD16

型号

RT-ZHD16 (1800.2207.02)

制造商

Rohde & Schwarz

配置型号包含以下特性:

Oscilloscope Probes

配置

技术指标

产品总览

资源

让我们为您提供准确的配置

请使用“获取快速报价”，我们将根据您的需求与您联系并报价。

您也可以选择保持联系，我们会为您提供正确的应用和采购解决方案。

产品总览

The R&S®RT-ZHD high voltage differential probes can be used to safely measure peak voltages up to 6000 V. Excellent common mode rejection ratio, a bandwidth of up to 200 MHz and an integrated DC voltmeter are some of their highlights.

Key Features

Maximum voltage: up to 6000 V

Bandwidth: up to 400 MHz

Integrated high precision DC voltmeter (not available for all models)

Specifications
High Voltage Probes for Oscilloscopes
Model Overview
Model	Order Number	Bandwidth	Max. Voltage	Type	Attenuation Factor	Input Impedance
RT-ZHD07	1800.2307.02	200 MHz	750 V, 300 V CAT III	active, differential	25:1/250:1	5 MΩ \|\| 2.5 pF
RT-ZHD15	1800.2107.02	100 MHz	1500 V, 1000 V CAT III	active, differential	50:1/500:1	10 MΩ \|\| 2 pF
RT-ZHD16	1800.2207.02	200 MHz	1500 V, 1000 V CAT III	active, differential	50:1/500:1	10 MΩ \|\| 2 pF
RT-ZHD60	1800.2007.02	100 MHz	6000 V, 1000 V CAT III	active, differential	100:1/1000:1	40 MΩ \|\| 2 pF
