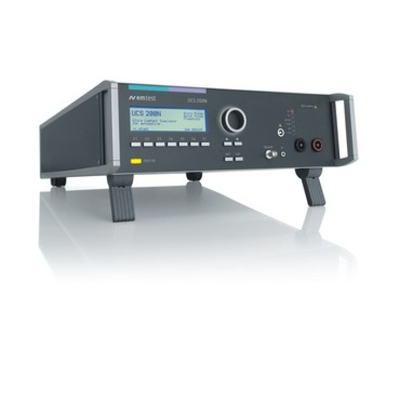

The UCS 200N Ultra-Compact Simulator series for Automotive Transients unifies the capabilites of an EFT/Burst simualtor, a Micropulse simulator and the required coupling network into one box.
The UCS 200N series is equiped to meet all international and car manufacturer specifications from around the globe. The built-in coupling network ranges up to 200A depending on the model. The built-in coupling network can be used and controlled by any unit of the LD 200N series, VDS 200N series and PFS 200N series. For tests beyond standard's requirements the waveform parameters of the Micropulse generator can be varied in a wide range by means of the FreeStyle mode.
| KEY FEATURES |
| Built-in EFT/Burst generator module |
| Built-in Micropulse generator module (ISO 7637, JASO, SAE and NISSAN) |
| Built-in coupling network 60V, up to 200A |
| Built-in battery switch |
| Overcurrent protection |
| USB and GPIB-Bus |
| SPECIFICATIONS |
|
| UCS 200Nxx Series Overview |
|
| Model | Built-in Coupler |
| UCS 200N50 | Built-in Coupler +60 VDC / 50 A (100 A @ 500 ms inrush) |
| UCS 200N100 | Built-in Coupler +60 VDC / 100 A (150 A @ 500 ms inrush) |
| UCS 200N150 | Built-in Coupler +60 VDC / 150 A |
| UCS 200N200 | Built-in Coupler +60 VDC / 200 A |
| SPECIFICATIONS |
|
| UCS 200Nxx 2 Series Overview |
|
| Model | Description |
| UCS 200N50.2 | Built-in Coupler +80 VDC / 50 A |
| UCS 200N100.2 | Built-in Coupler +80 VDC / 100 A |
| UCS 200N150.2 | Built-in Coupler +80 VDC / 150 A |
| UCS 200N200.2 | Built-in Coupler +80 VDC / 200 A |
| SPECIFICATIONS |
|
| UCS 200Nxx 3 Series Overview |
|
| Model | Description |
| UCS 200N50.3 | Built-in Coupler +80 VDC / 50 A |
| UCS 200N100.3 | Built-in Coupler +80 VDC / 100 A |
| UCS 200N150.3 | Built-in Coupler +80 VDC / 150 A |
| UCS 200N200.3 | Built-in Coupler +80 VDC / 200 A |
