Rohde & Schwarz ZV-WR12 (1307.7700.10)
Waveguide Calibration Kit; WR12, Without Sliding Match, 60 GHz to 90 GHz
型号
ZV-WR12 (1307.7700.10)产品类别
RF & Microwave Network Analyzers制造商
Rohde & Schwarz配置型号包含以下特性:
RF & Microwave Network AnalyzersCal Kits85GHz <50GHz <= 85GHz配置
技术指标
产品总览
资源
让我们为您提供准确的配置
技术指标
在选择附件时标明其特性， 有关附件详细信息请参见“配置”选项。
| 特性 | 参数 |
|---|---|
| High Frequency (range) | 85GHz < |
| Low Frequency (range) | 50GHz <= 85GHz |
产品总览

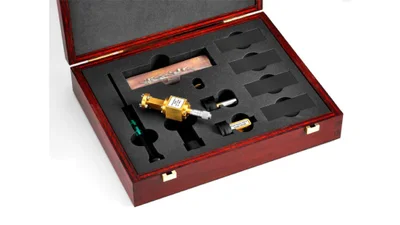

The ZV-WRxx calibration kit series provides waveguide calibration standards for system error correction of mmWave network analyzer setups. All common waveguide bands from 50 GHz to 1100 GHz are supported. The calibration kits contain short, offset short and match. Separate models with a sliding match are also available. The sets come with a hex ball driver and hex ball screws.
The calibration kit data are pre-defined on each Rohde & Schwarz vector network analyzer, allowing for straightforward and reliable calibration.
| Key Features |
| Waveguide calibration kit series covering 50 GHz to 1100 GHz |
| Including match, short, offset short |
| Optional version including sliding match |
| Calibration kit parameters pre-installed in R&S®VNAs |
| Calibration kit versions with sliding match available |
| Benefits | |
| Single Match Model | There are extra models that include a sliding match. Using a sliding match instead of a fixed match further increases measurement accuracy. |
| High Mechanical Stability | Especially with the high-frequency kits, a bare lambda/4 shim standard is very thin, which can result in tensions and bending when connected and in poor accuracy. To ensure reliable results, the shim standard for some ZV-WRxx kits is designed with an additional offset length to ensure high mechanical stability and reproducible results. (Please note: The dedicated offset short is a different standard.) |
| Specifications | |||||
ZV-WRx/ZCWMxx Waveguide Calibration Kit | |||||
| Model Overview | |||||
| Model | Order Number | Type | Frequency Range | Connector Type | Calibration Standards |
| ZV-WR02 | 1314.5550.10 | Waveguide Calibration Kit | 325 GHz to 500 GHz | WR02 | Short Offset Short Match Without sliding Match |
| ZV-WR03 | 1307.7300.30 | Waveguide Calibration Kit | 220 GHz to 325 GHz | WR03 | Without sliding match |
| ZV-WR03 | 1307.7300.31 | Waveguide Calibration Kit | 220 GHz to 325 GHz | WR03 | With sliding match |
| ZV-WR05 | 1307.8106.10 | Waveguide Calibration Kit | 140 GHz to 220 GHz | WR05 | Without sliding match |
| ZV-WR05 | 1307.8106.11 | Waveguide Calibration Kit | 140 GHz to 220 GHz | WR05 | With sliding match |
| ZV-WR06 | 1311.8807.10 | Waveguide Calibration Kit | 110 GHz to 170 GHz | WR06 | Without sliding match |
| ZV-WR06 | 1311.8807.11 | Waveguide Calibration Kit | 110 GHz to 170 GHz | WR06 | With sliding match |
| ZV-WR08 | 1307.7900.10 | Waveguide Calibration Kit | 90 GHz to 140 GHz | WR08 | Without sliding match |
| ZV-WR08 | 1307.7900.11 | Waveguide Calibration Kit | 90 GHz to 140 GHz | WR08 | With sliding match |
| ZV-WR10 | 1307.7100.10 | Waveguide Calibration Kit | 75 GHz to 110 GHz | WR10 | Without sliding match |
| ZV-WR10 | 1307.7100.11 | Waveguide Calibration Kit | 75 GHz to 110 GHz | WR10 | With sliding match |
| ZV-WR12 | 1307.7700.10 | Waveguide Calibration Kit | 60 GHz to 90 GHz | WR12 | Without sliding match |
| ZV-WR12 | 1307.7700.11 | Waveguide Calibration Kit | 60 GHz to 90 GHz | WR12 | With sliding match |
| ZV-WR15 | 1307.7500.30 | Waveguide Calibration Kit | 50 GHz to 75 GHz | WR15 | Without sliding match |
| ZV-WR15 | 307.7500.31 | Waveguide Calibration Kit | 50 GHz to 75 GHz | WR15 | With sliding match |
| ZCWM-1092 | 3628.5699.02 | Waveguide Calibration Kit | 170 GHz to 260 GHz | WM-1092 | Without sliding match |
| ZCWM-710 | 1339.4070.02 | Waveguide Calibration Kit | 260 GHz to 400 GHz | WM-710 | Without sliding match |
| ZCWM-570 | 1322.3099.10 | Waveguide Calibration Kit | 330 GHz to 500 GHz | WM-570 | Without sliding match |
| ZCWM-380 | 1322.3101.02 | Waveguide Calibration Kit | 500 GHz to 750 GHz | WM-380 | Without sliding match |
| ZCWM-250 | 1322.3118.02 | Waveguide Calibration Kit | 750 GHz to 1100 GHz | WM-250 | Without sliding match |
