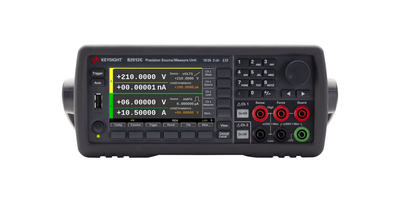

The B2912C Precision Source / Measure Unit (SMU) is a 2-channel, compact, cost-effective bench-top SMU that can source and measure voltage and current.
The Keysight B2912C precision source/measure unit (SMU) is a compact, cost-effective 2-channel SMU that accurately sources and measures voltage and current. It offers user-friendly I/V measurements without needing multiple instruments with its 4-quadrant capabilities. The B2912C features a 4.3-inch color display for graphical or numerical measurements and includes PC control software for remote operation at no extra cost. It also supports SCPI commands for seamless integration with conventional SMU setups, ensuring high throughput for efficient testing.
| KEY FEATURES |
| Source with a minimum resolution of 10 fA / 100 nV. |
| Measure with a minimum resolution of 10 fA / 100 nV. |
| Output up to 210 V and 3 A DC / 10.5 A pulse. |
| Generate arbitrary waveforms and digitize at intervals as short as 10 μs. |
| SPECIFICATIONS |
|
| Model: B2912C |
|
| Feature | Parameter |
| Maximum Sample Rate | 100 kSa/s |
| Minimum Current Measurement Resolution | 10 fA |
| Maximum Current per Output | 3.0 A DC / 10.5 A pulse |
| Maximum Voltage per Output | 210 V |
| Source Resolution | 6.5 digits |
| Minimum Sampling Interval | 10 µs |
| Number of Channels | 2 |
| Pulse Output | Yes |
| SPECIFICATIONS |
|
| B29xxC Series Overview |
|
| Model | Description |
| B2901CL | Precision Source/Measure Unit, 1 ch, 1 pA Resolution, 21 V, 1.5 A |
| B2910CL | Precision Source/Measure Unit, 1 ch, 10 fA resolution, 210 V, 1.5 A |
| B2901C | Precision Source/Measure Unit, 1 ch, 100 fA, 210 V, 3 A DC/10.5 A pulse |
| B2902C | Precision Source/Measure Unit, 2 ch, 100 fA, 210 V, 3 A DC/10.5 A pulse |
| B2911C | Precision Source/Measure Unit, 1 ch, 10 fA, 210 V, 3 A DC/10.5 A pulse |
| B2912C | Precision Source/Measure Unit, 2 ch, 10 fA, 210 V, 3 A DC/10.5 A pulse |
| OPTIONS |
|
| 1A7 | Calibration + Uncertainties + Guardbanding (not accredited) |
| A6J | ANSI Z540-1-1994 calibration |
| UK6 | Commercial calibration certificate with test data |
| SPECIFICATIONS |
|
| B29xxC Series Accessories Overview |
|
| Model | Description |
| N1297A | Banana - Triax adapter for 2-wire (non-Kelvin) connection |
| N1297B | Banana - Triax adapter for 4-wire (Kelvin) connection |
| N1294A-011 | Interlock cable for 16442B (1.5 m) |
| N1294A-012 | Interlock cable for 16442B (3.0 m) |
| N1294A-031 | GPIO-BNC trigger adapter |
| N1294A-032 | Digital I/O trigger cable for multiple unit control |
| 16494A-001 | Low leakage triax cable (1.5 m) |
| 16494A-002 | Low leakage triax cable (3.0 m) |
| 16494A-005 | Low leakage triax cable (4.0 m) |
| 1CM124A | Rack mount flange kit |
