Quick quote: Rohde & Schwarz SMBVB-K44 (1423.7753.07)
Rohde & Schwarz SMBVB-K44 (1423.7753.07)
GPS, C/A and P Signals in L1 and L2 Bands; for SMBV100B (Portable License)
Model
SMBVB-K44 (1423.7753.07)Manufacturer
Rohde & SchwarzConfigured models contain the following attributes:
Configurations
Key Specs
Product Overview
Resources
Let us help you with your exact configuration
Please use 'Get Quick Quote' and we’ll contact you and quote for your exact need.
You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.
Key Specs
Please refer to the Resources section for Datasheets or see the Product Overview.
If you would like to know more, please get in touch and one of our team will be happy to help.
Product Overview

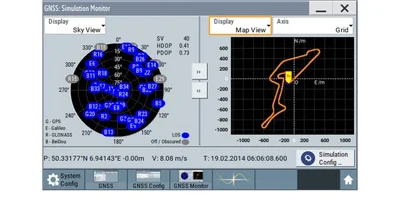

The SMBV100B can be turned into a powerful and feature-rich GNSS simulator. With its capability to simulate multi-constellation scenarios, the SMBV100B is able to cover a variety of GNSS applications. Together with the options SMBV-K136 and SMBV-K137, the SMBVB-K44 allows to simulate up to 102 GPS channels/satellites in the frequency bands L1, L2 and L5.
The SMBV100B-K44/-K66/-K94/-K97/-K98/-K106/-K107/-K108/-K109/-K132/- K133/-K134/-K135/-K136/-K137 are firmware applications that add functionality to generate signals in accordance with GPS, Galileo, GLONASS, NavIC, QZSS and COMPASS/BeiDou navigation systems and SBAS augmentation systems.
| Key Features |
| Simulation of up to 102 GPS channels/satellites in the frequency bands L1, L2 and L5 |
| Support of predefined and user-defined A-GPS test scenarios, including generation of A-GPS assistance data |
| Moving receiver simulations based on predefined and user-defined waypoints with additional support of NMEA and KML files and waypoint smoothing using vehicle description files |
| Configurable atmospheric models |
| Simulation of orbit perturbations and pseudorange errors |
| Interactive power controls of individual satellites |
| Hybrid GNSS satellite constellations with up to 102 satellites in combination with options SMBVB-K98, SMBVB-K66, SMBVB-K94, SMBVB-K107, SMBVB-K132 and/or SMBVB-K106 |
| Specifications | ||
| Satellite Navigation | ||
| Option Overview | ||
| Model Option | Designation | Description |
| SMBVB-K44 | GPS | C/A and P signals in L1 and L2 bands |
| SMBVB-K66 | Galileo | E1 OS, E6, E5a and E5b signals in L1, L2 and L5 bands |
| SMBVB-K94 | GLONASS | C/A signal in L1 and L2 bands |
| SMBVB-K97 | NavIC/IRNSS | SPS signal in L5 band |
| SMBVB-K98 | Modernized GPS | L2C and L5 signals in L2 and L5 bands |
| SMBVB-K107 | BeiDou/COMPASS | B1I signal in L5 band |
| SMBVB-K132 | Modernized BeiDou | B1C, B3I and B2a signals in L1, L2 and L5 bands |
| Specifications | ||
| SMBV100B Vector Signal Generator | ||
| Option Overview | ||
| Model | Order Number | Description |
| Base Unit | ||
| SMBV100B | 1423.1003.02 | Vector signal generator * Including: baseband generator with ARB (64 Msamples, 120 MHz RF bandwidth) power cable quick start guide |
| Frequency Options | ||
| SMBVB-B103 | 1423.6270.02 | 8 kHz to 3 GHz |
| SMBVBKB106 | 1423.6370.02 | Frequency extension to 6 GHz |
| RF Options | ||
| SMBVB-B1 | 1423.6470.02 | OCXO reference oscillator |
| SMBVB-B1H | 1423.6570.02 | High performance OCXO reference oscillator |
| SMBVB-B3 | 1423.7260.02 | 1 GHz reference |
| SMBVB-K704 | 1423.7618.02 | Flexible reference input from 1 MHz to 100 MHz |
| SMBVB-K31 | 1423.6670.02 | High output power |
| SMBVB-B32 | 1423.6711.02 | Ultra high output power |
| SMBVB-K90 | 1423.7601.02 | Phase coherence |
| SMBVB-K22 | 1423.7560.02 | Pulse modulator |
| SMBVB-K23 | 1423.7576.02 | Pulse generator |
| SMBVB-K24 | 1423.7582.02 | Multifunction generator |
| SMBVB-K720 | 1423.7599.02 | AM/FM/φM |
| Baseband | ||
| SMBVB-K17 | 1423.7624.02 | Differential analog I/Q outputs |
| SMBVB-K19 | 1423.7630.02 | Digital baseband output |
| SMBVB-K511 | 1423.7653.02 | ARB memory extension to 512 Msample |
| SMBVB-K512 | 1423.7660.02 | ARB memory extension to 1 Gsample |
| SMBVB-K513 | 1423.8589.02 | ARB memory extension to 2 Gsample |
| SMBVB-K520 | 1423.7676.02 | Baseband real-time extension |
| SMBVB-K523 | 1423.7682.02 | Baseband extension to 240 MHz RF bandwidth |
| SMBVB-K524 | 1423.7699.02 | Baseband extension to 500 MHz RF bandwidth |
| Baseband Enhancements | ||
| SMBVB-K62 | 1423.7876.02 | Additive white Gaussian noise (AWGN) |
| SMBVB-K80 | 1423.7647.02 | Bit error rate tester |
| SMBVB-K540 | 1423.7701.02 | Envelope tracking |
| SMBVB-K541 | 1423.7718.02 | AM/AM, AM/φM predistortion |
| SMBVB-K544 | 1423.8150.02 | User-defined frequency response correction |
| SMBVB-K548 | 1423.8820.02 | Crest factor reduction |
| Digital Standards | ||
| SMBVB-K40 | 1423.7724.02 | GSM/EDGE |
| SMBVB-K41 | 1423.7730.02 | EDGE Evolution |
| SMBVB-K42 | 1423.7747.02 | 3GPP FDD |
| SMBVB-K46 | 1423.7760.02 | CDMA2000 |
| SMBVB-K47 | 1423.7776.02 | 1xEV-DO |
| SMBVB-K50 | 1423.7782.02 | TD-SCDMA |
| SMBVB-K51 | 1423.7799.02 | TD-SCDMA enhanced BS/MS tests |
| SMBVB-K54 | 1423.7824.02 | IEEE 802.11 (a/b/g/n/j/p) |
| SMBVB-K55 | 1423.7830.02 | LTE Release 8 |
| SMBVB-K60 | 1423.7853.02 | Bluetooth® EDR |
| SMBVB-K61 | 1423.7860.02 | Multicarrier CW signal generation |
| SMBVB-K83 | 1423.7899.02 | 3GPP FDD HSPA/HSPA+, enhanced BS/MS tests |
| SMBVB-K84 | 1423.7901.02 | LTE Release 9 |
| SMBVB-K85 | 1423.7918.02 | LTE Release 10 |
| SMBVB-K86 | 1423.7924.02 | IEEE 802.11ac |
| SMBVB-K87 | 1423.7930.02 | 1xEV-DO Rev. B |
| SMBVB-K89 | 1423.7947.02 | NFC A/B/F |
| SMBVB-K112 | 1423.8037.02 | LTE Release 11 |
| SMBVB-K113 | 1423.8043.02 | LTE Release 12 |
| SMBVB-K114 | 1423.8050.02 | OFDM signal generation |
| SMBVB-K115 | 1423.8066.02 | Cellular IoT Release 13 |
| SMBVB-K117 | 1423.8089.02 | Bluetooth® 5.x |
| SMBVB-K119 | 1423.8108.02 | LTE Release 13/14/15 |
| SMBVB-K131 | 1423.8720.02 | LoRa® |
| SMBVB-K142 | 1423.8114.02 | IEEE 802.11ax |
| SMBVB-K143 | 1423.8637.02 | Cellular IoT Release 14 |
| SMBVB-K144 | 1423.8608.02 | 5G NR Release 15 |
| SMBVB-K146 | 1423.8808.02 | Cellular IoT Release 15 |
| SMBVB-K148 | 1423.8843.02 | 5G NR Release 16 |
| SMBVB-K149 | 1423.8889.02 | UWB HRP |
| Digital Standards using R&S®WinIQSIM2ᵀᴹ ** | ||
| SMBVB-K240 | 1423.8166.02 | GSM/EDGE |
| SMBVB-K241 | 1423.8172.02 | EDGE Evolution |
| SMBVB-K242 | 1423.8189.02 | 3GPP FDD |
| SMBVB-K244 | 1423.8195.02 | GPS |
| SMBVB-K246 | 1423.8208.02 | CDMA2000® |
| SMBVB-K247 | 1423.8214.02 | 1xEV-DO Rev A |
| SMBVB-K250 | 1423.8220.02 | TD-SCDMA |
| SMBVB-K251 | 1423.8237.02 | TD-SCDMA enhanced BS/MS tests |
| SMBVB-K252 | 1423.8243.02 | DVB-H |
| SMBVB-K253 | 1423.8250.02 | DAB/T-DMB |
| SMBVB-K254 | 1423.8266.02 | IEEE 802.11a/b/g/n |
| SMBVB-K255 | 1423.8272.02 | LTE Release 8 |
| SMBVB-K260 | 1423.8295.02 | Bluetooth® EDR |
| SMBVB-K261 | 1423.8308.02 | Multicarrier CW signal generation |
| SMBVB-K262 | 1423.8314.02 | Additive White Gaussian Noise (AWGN) |
| SMBVB-K266 | 1423.8320.02 | Galileo |
| SMBVB-K283 | 1423.8337.02 | 3GPP FDD HSPA/HSPA+, enhanced BS/MS tests |
| SMBVB-K284 | 1423.8343.02 | LTE Release 9 |
| SMBVB-K285 | 1423.8350.02 | LTE Release 10 |
| SMBVB-K286 | 1423.8366.02 | IEEE 802.11ac |
| SMBVB-K287 | 1423.8372.02 | 1xEV-DO Rev. B |
| SMBVB-K289 | 1423.8389.02 | NFC A/B/F |
| SMBVB-K294 | 1423.8395.02 | GLONASS 1 satellite |
| SMBVB-K297 | 1423.8695.02 | NavIC/IRNSS 1 satellite |
| SMBVB-K298 | 1423.8408.02 | Modernized GPS |
| SMBVB-K407 | 1423.8489.02 | BeiDou |
| SMBVB-K412 | 1423.8495.02 | LTE Release 11 |
| SMBVB-K413 | 1423.8508.02 | LTE Release 12 |
| SMBVB-K414 | 1423.8595.02 | OFDM signal generation |
| SMBVB-K415 | 1423.8514.02 | Cellular IoT Release 13 |
| SMBVB-K416 | 1423.8520.02 | DVB-S2/DVB-S2X |
| SMBVB-K417 | 1423.8537.02 | Bluetooth® 5.x |
| SMBVB-K418 | 1423.8543.02 | Verizon 5GTF signals |
| SMBVB-K419 | 1423.8550.02 | LTE Release 13/14/15 |
| SMBVB-K431 | 1423.8737.02 | LoRa® |
| SMBVB-K432 | 1423.8837.02 | Modernized BeiDou |
| SMBVB-K442 | 1423.8566.02 | IEEE 802.11ax |
| SMBVB-K443 | 1423.8643.02 | Cellular IoT Release 14 |
| SMBVB-K444 | 1423.8614.02 | 5G NR Release 15 |
| SMBVB-K446 | 1423.8814.02 | Cellular IoT Release 15 |
| SMBVB-K448 | 1423.8850.02 | 5G NR Release 16 |
| SMBVB-K449 | 1423.8850.02 | UWB HRP |
Waveform Package for Signals from: R&S®WinIQSIM2™ R&S®Pulse Sequencer R&S®Pulse Sequencer (DFS) *** | ||
| SMBVB-K200 | 1423.8714.71 | 1 waveform |
| SMBVB-K200 | 1423.8714.72 | 5 waveforms |
| SMBVB-K200 | 1423.8714.75 | 50 waveforms |
Options with external R&S®Pulse Sequencer Software or R&S®Pulse Sequencer (DFS) Software | ||
| SMBVB-K300 | 1423.8414.02 | Pulse sequencing |
| SMBVB-K301 | 1423.8420.02 | Enhanced pulse sequencing |
| SMBVB-K308 | 1423.8437.02 | DF |
| SMBVB-K350 | 1423.8443.02 | DFS signal generation |
| GNSS and Avionics | ||
| SMBVB-K44 | 1423.7753.02 | GPS |
| SMBVB-K66 | 1423.7882.02 | Galileo |
| SMBVB-K94 | 1423.7953.02 | GLONASS |
| SMBVB-K97 | 1423.8708.02 | NAVIC/IRNSS |
| SMBVB-K98 | 1423.7960.02 | Modernized GPS |
| SMBVB-K106 | 1423.7982.02 | SBAS/QZSS |
| SMBVB-K107 | 1423.7999.02 | BeiDou |
| SMBVB-K108 | 1423.8008.02 | GNSS real world simulation |
| SMBVB-K109 | 1423.8014.02 | GNSS real-time interface |
| SMBVB-K132 | 1423.8789.02 | Modernized BeiDou |
| SMBVB-K133 | 1423.8743.02 | Single-satellite GNSS |
| SMBVB-K134 | 1423.8750.02 | Upgrade to dual-frequency GNSS |
| SMBVB-K135 | 1423.8766.02 | Upgrade to triple-frequency GNSS |
| SMBVB-K136 | 1423.8772.02 | Add 6 GNSS channels |
| SMBVB-K137 | 1423.8795.02 | Add 12 GNSS channels |
| SMBVB-K111 | 1423.8020.02 | GBAS |
| SMBVB-K151 | 1423.8120.02 | ILS |
| SMBVB-K152 | 1423.8137.02 | VOR |
| SMBVB-K153 | 1423.8143.02 | DME |
| SMBVB-K360 | 1423.8650.02 | ERA-GLONASS test suite |
| SMBVB-K361 | 1423.8666.02 | eCall test suite |
| SMBVB-K362 | 1423.8672.02 | GNSS test suite |
| Other Options | ||
| SMBVB-B80 | 1423.7160.02 | Removable mass storage |
| SMBVB-B81 | 1423.7360.02 | Rear panel connector for RF path |
| Recommended Extras | ||
| SMBVB-Z10 | 3639.9910.02 | Spare CFAST card |
| ZZA-KNA33 | 1177.8090.00 | 19" rack adapter |
| TS-USB1 | 6124.2531.00 | USB serial adapter for RS-232 remote control |
| DCV-2 | 0240.2193.18 | Documentation of calibration values |
| ACASMBV100 | 3598.1027.03 | SMBV100B accredited calibration (ISO 17025, ISO 9000) |
Notes:
* The base unit can only be ordered with an SMBVB-B103 frequency option.
** WinIQSIM2ᵀᴹ requires an external PC
*** Maximum 250 waveforms per instrument can be registered.
Resources
File resources
Rohde and Schwarz SMBVB-K44/K66/K94/K97/K98/K106/K107/K108/K109/K132/K134/K135/K136/K137 User Manual
