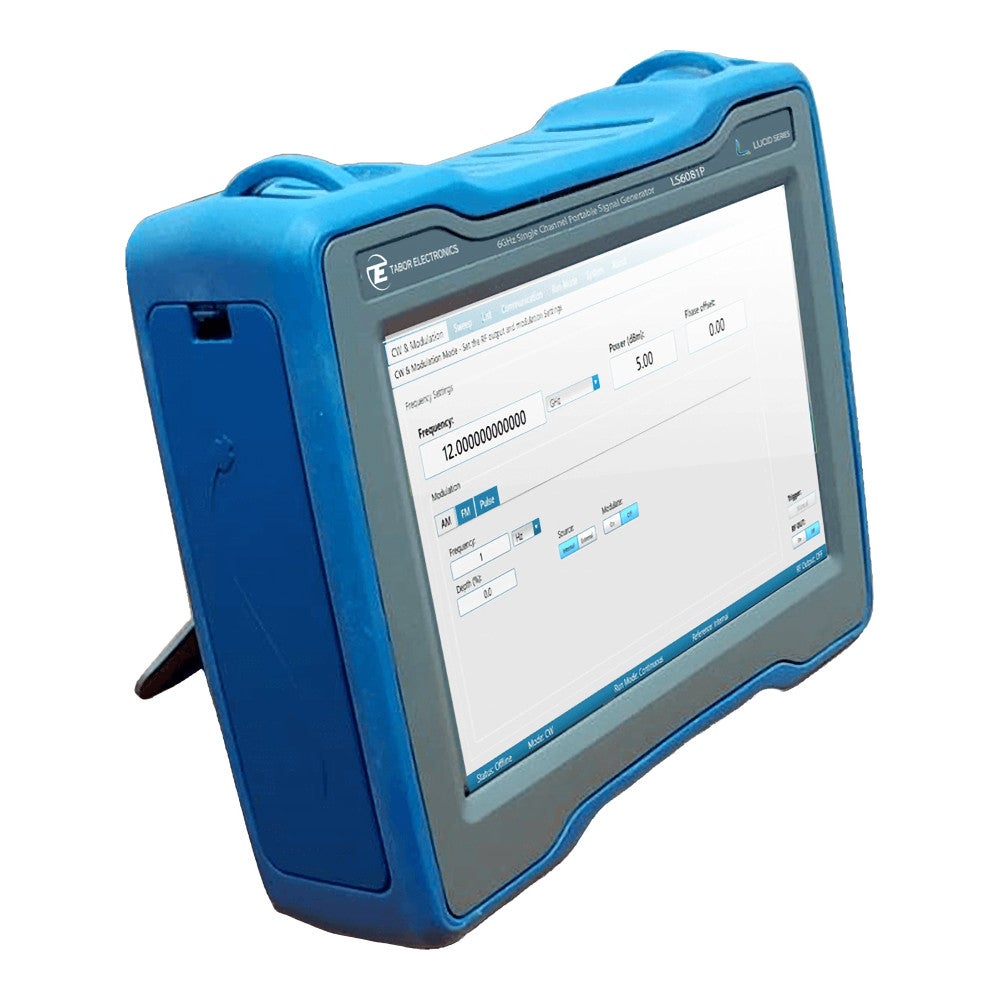

Tabor LSX2091P

Tabor LSX2091P is a 20GHz Single Channel Microwave Signal Generator that offers industry leading performance, in a modern tablet like design that can be used as a benchtop or portable unit. It features exceptionally fast switching speed, superior signal integrity and purity and all the necessary modulated signals for analog communication systems. The portable design with a 10” touch screen offers excellent performance and meet today’s most demanding applications, whether in the lab or out in the field.

Features:
- 20GHz Single Channel Microwave signal generator
- Frequency Resolution of 0.001Hz
- Phase noise of -134dBc/Hz at 1GHz, and -115dBc/Hz at 10GHz, at 10kHz carrier offset
- Max amplitude 10dBm Calibrated, 15dBm Settable
- Min amplitude -50dBm Calibrated, -70dBm Settable
- Amplitude Resolution of 0.01dB
- AM, FM, PM, Sweep & Pulse Modulation
- Field ready, with 10” touch screen suited for day and night use and 1 hour battery operation
- Remotely programmable via MATLAB, Python, LabVIEW and other software programming environments
- Removable uSD card for instrument security

Options and accessories:
PLS - Pulse Gennerator
PAT - Pattern Generator
LP - Low Power option to -90 dBm
FS - Fast Switching option 100us
EMU - Emulator Pack includes emulators for Keysight, R&S, Anapico & Holzworth
STN - Lucid X desktop holder, designed to hold the module upright
WE - 1 year warranty extension (standard warranty 3 years)
