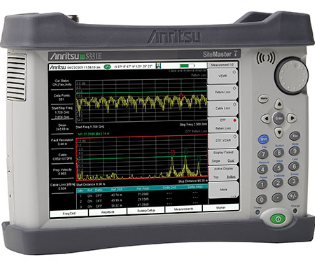

The S331E Site Master was designed to support wireless service providers, contractors, and installers. A Cable and Antenna Analyzer from 2 MHz to 4 GHz, weighing less than 6 pounds, with resistive 8.4 inch daylight touchscreen.
The S331E Site Master does all this while delivering the ease of use, rich functionality, and best-in-class price/performance you've come to expect from Anritsu. Designed to handle the most punishing field conditions, the S331E Site Master Cable and Antenna Analyzer dramatically enhances your productivity and transforms the traditional fix-after-failure maintenance model to one that identifies and fixes problems before major failures occur.
The CPRI/OBSAI RF option allows users to see the Uplink and Downlink signals via the optical CPRI/OBSAI link in a traditional RF Spectrum and Spectrogram view.
| KEY FEATURES |
| Cable and Antenna Analyzer: 2 MHz – 4 GHz |
| Return Loss, VSWR, Cable Loss, Distance-To-Fault, Smith Chart, 1-Port Phase |
| Field-proven design: Four-hour battery life, rugged, compact, lightweight, daylight viewable display |
| USB connectivity, built-in touch screen keyboard |
| Intuitive menu-driven touch screen user interface |
| APPLICATIONS |
| Cable & Antenna Installation and Maintenance for wireless service providers, contractors, military, aerospace and defense, and public safety applications |
| Insertion Loss |
| 2-port measurements of Tower Mounted Amplifiers, duplexers, diplexers, filters |
| Phase Matching Cables |
| Antenna Tuning |
| CPRI RF Measurements |
| OBSAI RF measurments |
| SPECIFICATIONS |
|
|
Site Master™ Compact Handheld
Cable & Antenna Analyzer
with Spectrum Analyzer Overview
|
|
|
| Model | Frequency | Description |
| S331E | 2 MHz to 4 GHz | Cable and Antenna Analyzer |
| S332E | 2 MHz to 4 GHz
9 kHz to 4 GHz
| Cable and Antenna Analyzer
Spectrum Analyzer
|
| S361E | 2 MHz to 6 GHz | Cable and Antenna Analyzer |
| S362E | 2 MHz to 6 GHz
9 kHz to 6 GHz
| Cable and Antenna Analyzer
Spectrum Analyzer
|
| SPECIFICATIONS |
|
Site Master™ Compact Handheld
Cable & Antenna Analyzer
with Spectrum Analyzer Overview
|
|
| Model | Description |
| Options |
|
| S331E-0010 | Variable Voltage Bias Tee |
| S331E-0021 | 2-port Transmission Measurement |
| S331E-0031 | GPS Built-in Receiver (Requires Antenna P/N 2000-1528-R, sold separately) |
| S331E-0019 | High Accuracy Power Meter (Requires USB Power Sensor) |
| S331E-0413 | Ethernet Connectivity |
| S331E-0098 | Standard Calibration to Z540 |
| S331E-0099 | Premium Calibration to Z540 plus test data |
