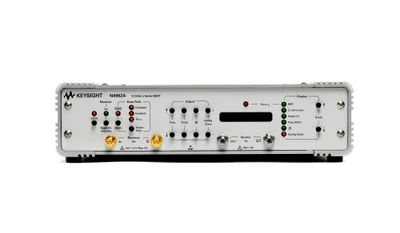

Keysight Technologies N4962A

Serial BERT; 12.5 Gb/s

Model

N4962A

Product Family

Digital Design

Manufacturer

Keysight Technologies

Configured models contain the following attributes:

Digital DesignBER Testing 2G-12GB/s

Configurations

Key Specs

Product Overview

Resources

Let us help you with your exact configuration

Please use 'Get Quick Quote' and we’ll contact you and quote for your exact need.

You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.

Product Overview

The Keysight N4962A is a cost-effective 10G BERT, consisting of an internal clock system, PRBS generator, and error detector. It is designed for automated production-line testing, manufacturing, and characterization. The N4962A instrument features highly integrated custom ASICs, which lower part count and operating temperature, resulting in high reliability.

The N4962A is also compact with a simple interface, making it ideal for use on a production test bench.

Key Features

Internal clock synthesizer for 9.90 to 11.35 Gb/s operation

0.5 to 12.5 Gb/s operation with external clock

Multiple clock and pattern triggers

Programmable output amplitude control

Selectable PRBS pattern length, mark-space density

Local push-button and GPIB remote interface

Applications

10G and lower rate optical transceiver production test

Communication component incoming inspection

General 10G device characterization

Specifications
N4962A Serial BERT 12.5 Gb/s
Features	Parameters
Built-in Jitter Injection	No (external with N4963A-101)
Clock Data Recovery Built-In	No
Differential Outputs/Inputs	Yes
Enhanced Measurements	Yes, with N4980A
Internal/External Clock	Internal clock 9.85 to 11.35 Gb/s. External clock required for < 9.85 and > 11.35 Gb/s e.g. N4963A
PRBS/Memory Data	PRBS only (2n-1)
Range of Operation	0.5 to 12.5 Gb/s
