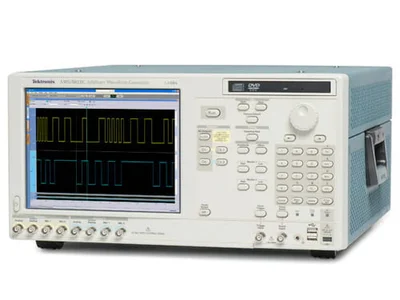

The AWG5000 Series of arbitrary waveform generators offers the industry's best solution to the challenging signal stimulus issues faced by designers who need to verify, characterize, and debug sophisticated electronic designs.
With an excellent dynamic range over all modulation bandwidths, the AWG5000 Series models provide a 14-bit DAC, sample rates up to 1.2 GS/ s, 2 to 4 output channels, synchronized 4 to 8 digital marker outputs, and 28 channels of digital data outputs. These instruments easily solve the toughest measurement challenges in wireless communications, defense electronics, digital consumer product design, data conversion equipment, test system synchronization, and semiconductor design and test.
The open windows (Windows 7) based instruments are easy, convenient to use, and connect with peripherals and other third-party software.
| Key Features |
| Only stand-alone AWG with 4 channels simplifies test setup and reduces uncertainty |
| RFXpress software enables quick creation of digitally modulated and radar signals |
Waveform sequencing and sub-sequencing:
Enables creation of infinite waveform loops, jumps, and conditional branches
Enhance the ability to replicate real-world signal behavior
|
Dynamic jump capability:
Enables the creation of complex waveforms that respond to changing external environment
|
| 2 or 4 differential/single-ended outputs provide testing flexibility |
| Up to 8 marker outputs ideal for system synchronization |
| 28 digital output channels create highly precise digital signals |
| Deep memory enables the creation of long complex waveform sequences |
| Playback of signals captured on scopes and real-time spectrum analyzers allows for simulation of real-world environments |
| Down to 800 ps resolution edge timing shift control |
| 8,000 steps real-time sequencing creates infinite waveform loops, jumps, and conditional branches |
| Easy to use and learn, shortens test time |
| Convenient bench-top form factor |
| Integrated PC supports network integration and provides a built-in DVD, removable hard drive, LAN, and USB ports |
| Specifications |
|
| Arbitrary Waveform Generators |
|
| Series Overview |
|
| Model | Description |
| AWG5012C | 1.2 GS/s, 14-bit resolution, 16M point per channel, 2-channel arbitrary waveform generator |
| AWG5014C | 1.2 GS/s, 14-bit resolution, 16M point per channel, 4-channel arbitrary waveform generator |
| AWG5002C | 600 MS/s, 14-bit resolution, 16M point per channel, 2-channel arbitrary waveform generator |
