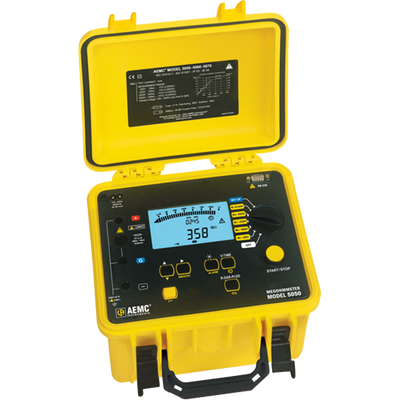

The Digital/Analog Megohmmeter Model 5050 is the latest design in 5000V insulation testers.
Features include automatic calculation and presentation of the Dielectric Absorption Ratio (DAR), Polarization Index (PI) and Dielectric Discharge (DD). The True Megohmmeter® Model 5050 displays the test voltage, insulation resistance and the leakage current during the test. Capacitance of the sample and discharge voltage present at the test leads are displayed at the conclusion of the test. This meter is designed with the highest level of built-in safety features. The Model 5050 can be operated from an internal rechargeable battery or from AC line power.
The Model 5060 can be operated from an internal rechargeable battery or from AC line power. An RS-232 port provides the ability to configure the unit and run a test from the PC. Test reports can be generated directly from the instruments to a printer or through the PC using the DataView® analysis software.
Specifications |
|
Megohmmeter Model 5060 |
|
Features | Parameters |
AC/DC Voltage Measurement |
|
Range | 1 to 4000V |
Accuracy | 1 to 99.9V: ±(1% R + 5ct)
100 to 4000V: ±(1% R + 3ct)
|
Resolution | 1 to 99.9V: 0.1V
100 to 999V: 1V
1000 to 4000V: 2V
|
Frequency Range | 1 to 2500V: DC or 15 to 500Hz
2501 to 4000V: DC
|
Input Impedance | 750kΩ or 3MΩ (range dependent) |
Insulation Measurement |
|
Test Voltage / Resistance Range | 500V: 30kΩ to 2TΩ
1000V: 100kΩ to 4TΩ
2500V: 100kΩ to 10TΩ
5000V: 300kΩ to 10TΩ
|
Measurement Accuracy | 30kΩ to 39.99GΩ: ±(5% R + 3ct)
40.0GΩ 10TΩ: ±(15% R + 10ct)
|
Variable Voltage | 40 to 5,100V |
Auto Discharge | Discharge time < 7s/µF from Vtest to 25V @ 5000V |
Live Circuit Indicator | Test inhibition if terminal voltage > 3, 10, 20%
(selectable by user) of test voltage
|
General Features |
|
Programmable Alarm | Yes |
DAR – PI – DD – R(t) | Yes |
Ramp Mode | No |
Step Mode | No |
Capacitance Measurement | 0.005 to 49.99µf |
Leakage Current Measurement | 0 to 3mA |
Open Circuit Voltage | ≤ 1.1 x Vn ±2V (Vn ±2% in variable mode) |
Memory | 4kB Memory / Stores 20 test results |
Power Supply | Rechargeable NIMH battery pack
External 85-256V, 50/60Hz
|
Battery Life | ≥ 1500 tests at 5000V into 5MΩ
with a duty cycle of 5 seconds on and 25 seconds off
|
Charging Time | 6 hours approximately
(charging allowed during tests)
|
Dimensions | 10.63 x 9.84 x 7.09”
(270 x 250 x 180mm)
|
Weight | 9.5 lbs
(4.3kg)
|
Altitude Operating | 6562' (2000m) |
Operating Temperature | 14° to +131°F
(-10° to +55°C) ≤80% RH
|
Storage Temperature | -40° to +158°F
(-40° to +70°C) ≤90% RH
|
IP Rating | IP 53 |
Safety Compliance | EN 61010-1
EN 61557
1000V CAT III
Pollution Degree 2
CE
|
Specifications |
|
|
|
Megohmmeter Series |
|
|
|
Model Overview |
|
|
|
Models | 5050 | 5060 | 5070 |
Test Voltage | 500Vdc
1000Vdc
2500Vdc
5000Vdc
| 500Vdc
1000Vdc
2500Vdc
5000Vdc
| 500Vdc
1000Vdc
2500Vdc
5000Vdc
|
Insulation Range | 10kΩ to 10TΩ | 10kΩ to 10TΩ | 10kΩ to 10TΩ |
Other Measurement | DAR
PI
DD
Capacitance
| DAR
PI
DD
Capacitance
| DAR
PI
DD
Capacitance
Step Voltage & Temperature Correction
|
Dielectric Discharge | 0.02 to 50.00 | 0.02 to 50.00 | 0.02 to 50.00 |
Leakage Current | 3mA | 3mA | 3mA |
Voltage Measurement | 1 to 2500Vac/dc | 1 to 2500Vac/dc | 1 to 2500Vac/dc |
Memory (Readings) | 20 | 1500 | 1500 |
Power Source | 9.6V NiMH battery pack | 9.6V NiMH battery pack | 9.6V NiMH battery pack |
Display | Digital/Analog, bargraph, backlight | 10Ω, 100Ω backlight | Graphical 300 x 240 resolution |
Communication | — | DataView® software / 128kB memory with RS-232 to USB adapter | DataView® software/ 128kB memory with RS-232 to USB adapter |
Dimensions | 10.63 x 9.84 x 7.09" | 10.63 x 9.84 x 7.09" | 10.63 x 9.84 x 7.09" |
Weight | 9.5 lbs | 9.5 lbs | 9.5 lbs |
Specifications |
|
Megohmmeter |
|
Model Overview |
|
Model / Part Number | Description |
Model 5050 / 2130.20 | Megohmmeter Model 5050:
Digital, with Analog Bargraph
Backlight
Alarm
Timer
500V, 1000V, 2500V, 5000V
Auto DAR/PI/DD
|
Model 5060 / 2130.20 | Megohmmeter Model 5060:
Digital, with Analog Bargraph
Backlight
Alarm
Timer
500V, 1000V, 2500V, 5000V
Auto DAR/PI/DD
RS232
DataView software
|
Standard Accessories | Extra large classic tool bag
Set of three 10ft (5Kv) leads (red/black/blue) with integral 5000V rated hippo clips
Power cord
Rechargeable battery pack
User manual
|
