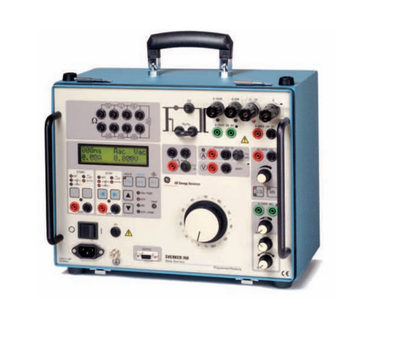

Megger SVERKER_750/760

The SVERKER 750/760 Relay Test Unit is the test engineer's toolbox. The control panel features a logical layout, still SVERKER 750/760 users will find it comfortably familiar and will be able to start work right away. The SVERKER 750/760 features many functions that make relay testing more efficient. For example, its powerful measurement section can display voltage, current, time, impedance, resistance, reactance, apparent power, active power, reactive power, phase angle and power factor. The voltmeter can also be used as a second ammeter (when testing differential relays for example). All values are presented on a single easy-to-read display.

The SVERKER 760 has a continuous phase shift function enabling you to test directional relays. Automatic reclosing devices can also be tested just as easily. The SVERKER 750/760 is designed to comply with OSHA and EU safety standards. SVERKER 750/760 is also equipped with a serial port for communication with personal computers and the PC software SVERKER Win.

Since the compact SVERKER weights only 18 kg (39 lbs), it is easy to move from site to site. The SVERKER 750/760 is capable of testing most single and polyphase protection relays including overcurrent, directional, undercurrent, differential and many others.

Key Features:

• High current/high power output
• Freeze and hold readings
• Interconnect up to three test sets for three phase relays
• Read external volts and current
• 0 to 360 degrees phase shift capability
• Optional software automates testing
