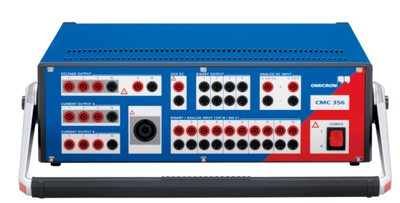

Omicron CMC 356 (VE002801)

The CMC 356 is the universal solution for testing all generations and types of protection relays. Its powerful six current sources (three-phase mode: up to 64 A / 860 VA per channel) with a great dynamic range, make the unit capable of testing even high-burden electromechanical relays with very high power demands.

The CMC 356 is the first choice for applications requiring the highest versatility, amplitude and power. Commissioning engineers will particularly appreciate its ability to perform wiring and plausibility checks of current transformers, by using primary injection of high currents from the test set.

^{1 The full technical specifications are available on request. All data specified are guaranteed, except where indicated otherwise. OMICRON guarantees the specified data for one year after factory calibration, within 23 °C ±5 °C / 73 °F ±10 °F in the frequency range from 10 to 100 Hz and after a warm-up phase > 25 minutes}

^{2 rd. = reading, rg. = range}

^{3 THD+N: Values at 50/60 Hz, 20 kHz measurement bandwidth}

^{4 For current outputs amplitude derating at > 380 Hz}

^{5 Amplitude derating at > 1000 Hz}

^{6 The ELT-1 hardware option turns the ten binary inputs into multifunctional analog AC and DC voltage measuring inputs and adds two DC measuring inputs (0 … 10 V / 0 … 20 mA) for transducer testing}
