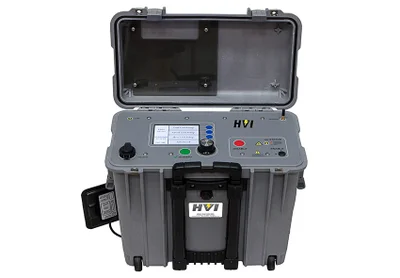

The VLF-34E is a top performer from the latest generation of HVI VLF AC hipots using a dry-type, air-cooled, solid state design with microprocessor control. Test programming, data retrieval, and custom PC software are intuitive and easy to learn. This unit is portable, affordable, and designed to withstand years of field use.
Its 0 – 34 kV AC peak/0 – 24 kV RMS output voltage meets world standards for maintenance testing up to 25 kV class cable, and its sine wave output pairs easily with the optional tan delta and partial discharge measurement systems.
| Key Features |
| VLF and DC output |
| Programmable test sequences |
| Automatic & manual control |
| USB port for exporting data |
| Wireless computer interface for remote control operation and data upload |
| Onscreen tan delta data display with optional TD-34E |
| XBee wireless for better signal sustainability and broader range than Bluetooth |
| Specifications |
|
VLF E SERIES
Advanced VLF Cable Testing Systems
|
|
| Features | Parameters |
| Input: | 115 V AC – 230 V AC, 50 Hz/60 Hz, 5 A max |
| Output: | 0-34 kV AC peak/0-24 kV AC RMS, sinusoidal DC: +/- 34 kV square wave: 34 kV sheath tester |
| Duty: | Continuous |
| Frequency: | 0.1 Hz to 0.01 Hz |
| Load Rating: | 0.5 µF @ 0.1 Hz @ 34 kV
1.0 µF @ 0.05 Hz @ 34 kV
5.0 µF @ 0.01 Hz @ 34 kV
µF rating increases at lower voltages
Ex: 0.77 µF @ 0.1 Hz @ 22 kV peak
|
| Metering: | Voltage kV peak or RMS |
| Current: | mA peak or RMS |
| Calculated: | Capacitance, resistance, flash overvoltage, time to failure |
Size & Weight:
(W x D x H)
| 19.7 x 12 x 18 in., 45 lbs.
500 x 305 x 458 mm, 21 kg
|
| Case: | Hard Pelican-type case with extendable handle and wheels |
| Output Termination: | 20’ RG8/U, Ground 20’ #2 |
| Specifications |
|
VLF E SERIES
Advanced VLF Cable Testing Systems
|
|
| Ordering Information |
|
| Model | Frequency |
| VLF-34E | 0 – 34 kV AC |
| VLF-65E | 0 – 65 kV AC |
