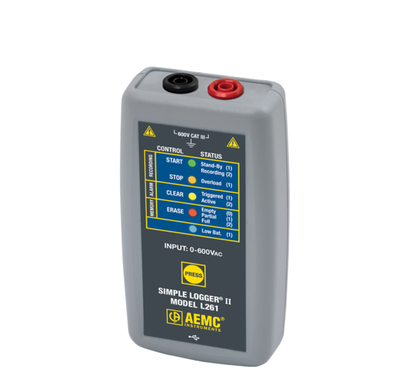

The Simple Logger® II Model L261 is a one channel recording device powered by two alkaline batteries. Line tracking is performed such that 64 samples over one line cycle are taken. Frequency tracking is performed over the range of ±2Hz around the nominal line frequency 50 or 60Hz.
Harmonic measurements are calculated from these 64 samples. Harmonics are only available from the Simple Logger® II Control Panel within the free DataView® software included with the unit. The Simple Logger® II records TRMS at a rate of up to eight times per second.
The measurement process is performed no more than eight times per second. TRMS calculations are performed on a single line cycle. This means that the inputs are ignored between measurement intervals.
The main advantage of the logger is its ability to perform a variety of recording tasks with easy and intuitive setup from a computer using DataView® software.
Specifications |
|
Simple Logger® II Model L261 |
|
Features | Parameters |
Channels | One |
Input | 4mm safety banana jacks |
Ranges (2) | 5 to 600VAC |
Accuracy (50/60Hz) | 5 to 50V ±(0.5% Rdg +1V)
50 to 600V (0.5% Rdg +0.5V)
|
Resolution | 0.1VAC |
Maximum Input Voltage | 1.2 x 600Vrms or 720Vrms |
Input Impedance | 40MΩ |
Sample Rate | 64 samples / cycle |
Storage Rate | Programmable from 125ms to 1 per day |
Storage Modes | Start/Stop, FIFO, extended mode (XRM) and Alarm |
Recording Length | 15 minutes to 6 weeks, programmable using DataView |
Memory | 240,000 measurements (512KB).
Recorded data is stored in non-volatile memory and will be retained even if battery is low or removed.
|
Communication | USB 2.0 optically isolated |
Power Source | 2x1.5V AA (LR6) alkaline batteries |
Battery Life | 100 hours to >45 days
(depending of sample rate/recording length)
|
Dimensions | 4.94 x 2.75 x 1.28”
(125 x 70 x 32mm)
|
Weight (With Battery) | 6.4 oz
(180g)
|
Case | Polycarbonate |
Operating Temperature | 14° to 122°F
(-10° to 50°C)
|
Storage Temperature | -4° to 140°F
(-20° to 60°C)
|
Relative Humidity | Up to 85% @ 95°F (35°C) |
Ingress Protection (IP) | IP40 |
EMC | EN 61326-1 |
Safety Compliance | IEC 61010-1
EN 61010-2-32 600V CAT III Pollution Degree 2
CE
|
Specifications |
|
|
Simple Logger® II Model L261 |
|
|
Model | Cat. No | Description |
L261 | 2126.05 | Simple Logger® II Model L261 |
