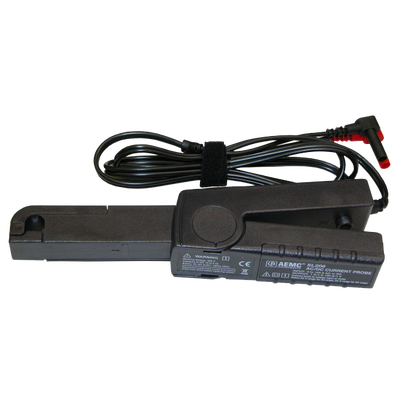

AC/DC Current Probe Model SL206 measures low DC or AC from 10mA to 80A. This battery-powered clamp-on probe may be used with digital multimeters, voltmeters, or other voltage-measuring instruments.
The probe jaws clamp around the conductor under test, allowing current measurements without breaking the circuit. Hall sensor technology senses the magnetic field produced by the current measured, and generates a millivolt DC or AC output signal. The narrow jaw is designed for optimum use in crowded wiring in industrial and automotive environments.
| Key Features |
| Low AC and DC measurements |
| Measures from 10mA to 100A |
| Dual range selection |
| Unique design for probing in crowded wiring areas |
| Hall effect sensor technology |
| UL approved for the US and Canada |
| Flame retardant UL94 V2 rated |
| Use with DMMs, voltmeters and other voltage measuring instruments |
| Specifications |
|
| AC/DC Current Probe Model SL206 |
|
| Features | Parameters |
| Maximum Conductor Size | 0.46” (11.8mm) |
| Current Range | 1.5AAC / 2ADC & 60A AC / 80ADC |
| Measurement Range | 10mA to 1.5AAC / 10mA to 2A DC & 50mA to 60AAC / 50mA to 80ADC |
| Output Signal | 1mV/mA AC/DC & 10mV/A AC/DC |
| Accuracy 50/60Hz | 2% @ 1mV/mA; 4% @ 10mV/A (50mA AC/DC to 40AAC / 40ADC);
12% @ 10mV/A (50 to 80A DC / 40 to 60AAC)
|
| Phase Shift | 1° |
| Frequency Range | DC to 2kHz @ 1mV/mA; DC to 8kHz @ 10mV/A |
| Output | Double insulated 5ft (1.5m) lead with 4mm safety banana plugs |
| Load Impedance | >10kΩ @ 10mV/A ; >100kΩ @ 1V/A |
| Overload | 120A continuous |
| Power Source | 9V alkaline |
| Battery Life | 68 hours typical |
| Operating Temperature | +32° to +122°F
(0° to +50°C)
|
| Storage Temperature | -22° to +176°F
(-30° to +80°C)
|
| Dimensions | 9.09 x 1.42 x 2.64”
(231 x 36 x 67mm)
|
| Weight | 11.6 oz (330g) with battery |
| Pollution Degree | 2 |
| Rating | UL 94 V2 (handle) |
| Ingress Protection (IP) | IP20 |
| Safety Compliance | IEC 1010-2-32, 600V CAT III |
| Specifications |
|
| AC/DC Current Probe Model SL200 Series |
|
| Part Number | Description |
| 1201.45 | AC/DC Current Probe Model SL206 |
| 1201.51 | AC/DC Current Probe Model SL261 (BNC) |
