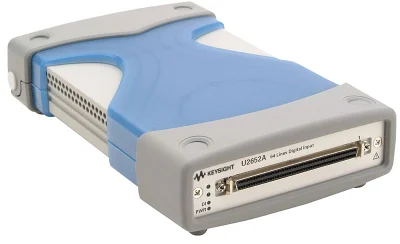

The Keysight U2652A USB Digital I/O is a cost-effective device with its offering of 64 opto-isolated digital lines. It comes bundled with the Agilent Measurement Manager (AMM) software for quick set up and data logging. Simplifying this further is the command logger function offered in the Agilent Measurement Manager that allows capturing of configuration commands that can be easily converted to snippets of VEE code. Other supported languages are VB, C , and C#.
Giving users more flexibility, the U2652A is compatible with a wide range of application development environments such as Agilent VEE, MATLAB® R2007a, NI LabVIEW and Microsoft® Visual Studio®.
The U2652A works together with an optional U2903A or U2904A terminal block for easy connections. With high voltage protection of 1250Vrms, the U2652A is ideal for industrial automation and control.
Key Features |
High-speed USB 2.0, USBTMC-USB488 standard (compatible with Microsoft® Windows® operating systems) |
Functions as a standalone or modular unit |
Interrupt function |
Virtual Port grouping function |
High Performance:
64 Input lines
Isolation Protection of 1250 Vrms
Input voltage: 10 to 24 V
|
A BenchVue software license (BV0025B) is now included with your instrument. BenchVue makes it simple to connect, control instruments, and automate test sequences |
Specifications |
|
U2600A Series
USB Modular Isolated Digital I/O Devices
|
|
Model Overview |
|
Model | Description |
U2651A | 32 Input, 32 Output USB modular digital I/O |
U2652A | 64 Input USB modular digital I/O |
U2653A | > 64 Output USB modular digital I/O |
Optional Accessories |
|
U2903A | Terminal block and SCSI-II 100-pin connector with 1-meter cable |
U2904A | Terminal block and SCSI-II 100-pin connector with 2-meter cable |
